MAINTENANCE MANUAL STEMME S12

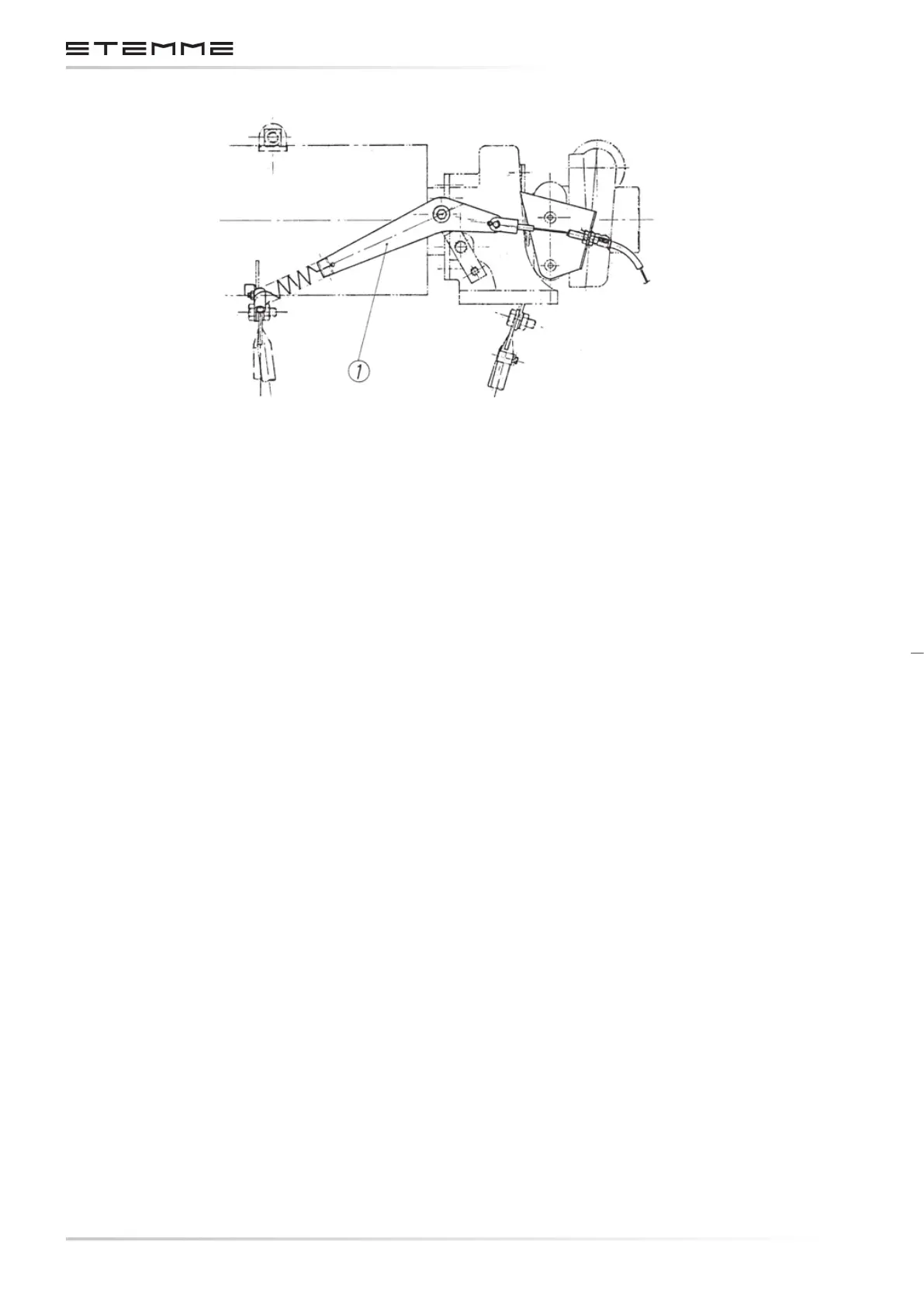

Figure 7.4.1.7a
Check of Waste Gate
7.4.1.8 CHECK OF GEARBOX
See Maintenance Manual (Line Maintenance) for ROTAX Engine Type 914 Series,
section 12-20-00, (Annex E).
7.4.1.9 INSPECTION OF THE MAGNETIC PLUG
See Maintenance Manual (Line Maintenance) for ROTAX Engine Type 914 Series, section 12-20-
00, (Annex E).
7.4.1.10 EXAMINATION OF DRIVE GEAR SET
See Maintenance Manual (Heavy Maintenance) for ROTAX Engine Types 912 and 914 Series.
7.4.1.11 CHECK OF THE CARBURETOR
To access the right carburetor, it will be necessary to dismount and raise the oil cooler.
Visually check carburetor assy.: Check for proper installation, general condition and secure at-
tachment of the carburetor assy. (carburetors, airbox, controls).
See Maintenance Manual (Line Maintenance) for ROTAX Engine Type 914 Series,
section 12-20-00, (Annex E).
