MAINTENANCE MANUAL STEMME S12

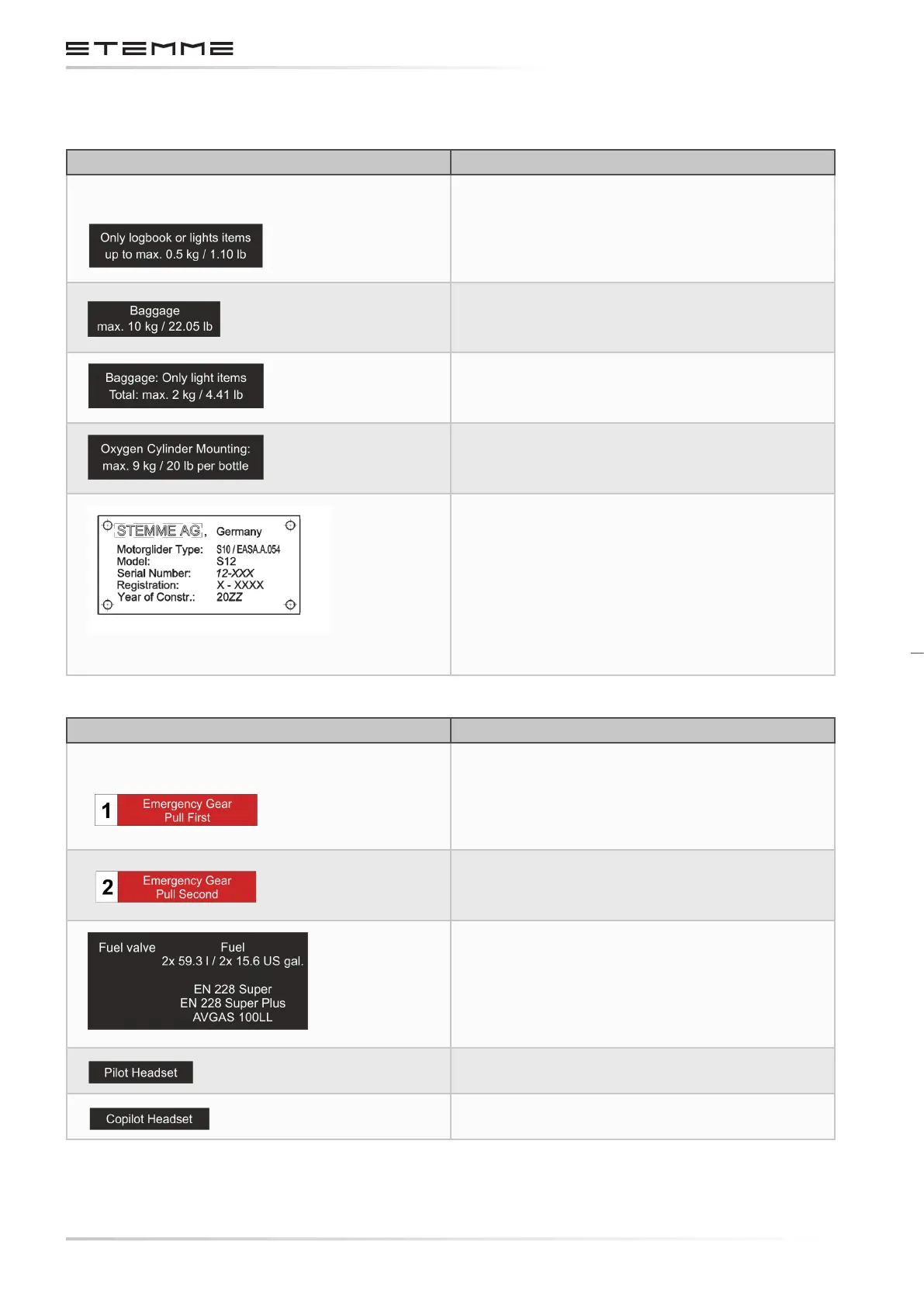

8.2 PLACARDS IN THE COCKPIT, REAR
PLACARD LOCATION/REMARKS
a) Descriptions / Displays:
On the ap of the rear storage compart-
ment in the center tunnel cover*.
On the top edge of the luggage compart-
ment behind the pilot and copilot seats*.
On the lower edge of the luggage com-
partments behind/between the pilot and
copilot headrests*.
On the lower edge of the luggage com-
partment behind/between the pilot and
copilot headrests (if option is installed)*.
The placard is illustrated in reduced scale.
Fireproof Type Placard, on the rear cockpit
wall.
PLACARD LOCATION/REMARKS
b) Handles:
(red)
On the top of the landing gear emergency
extension handle for the right landing gear
strut (right knob in ight direction).
(red)
On the top of landing gear emergency
extension handle for the left landing gear
strut (left knob in ight direction).
Right to the fuel shut-o valve*.
Near the pilots headset connectors.
Near the copilots headset connectors.
102 mm / 4.01 in
50 mm / 1.97 in
