MAINTENANCE MANUAL STEMME S12

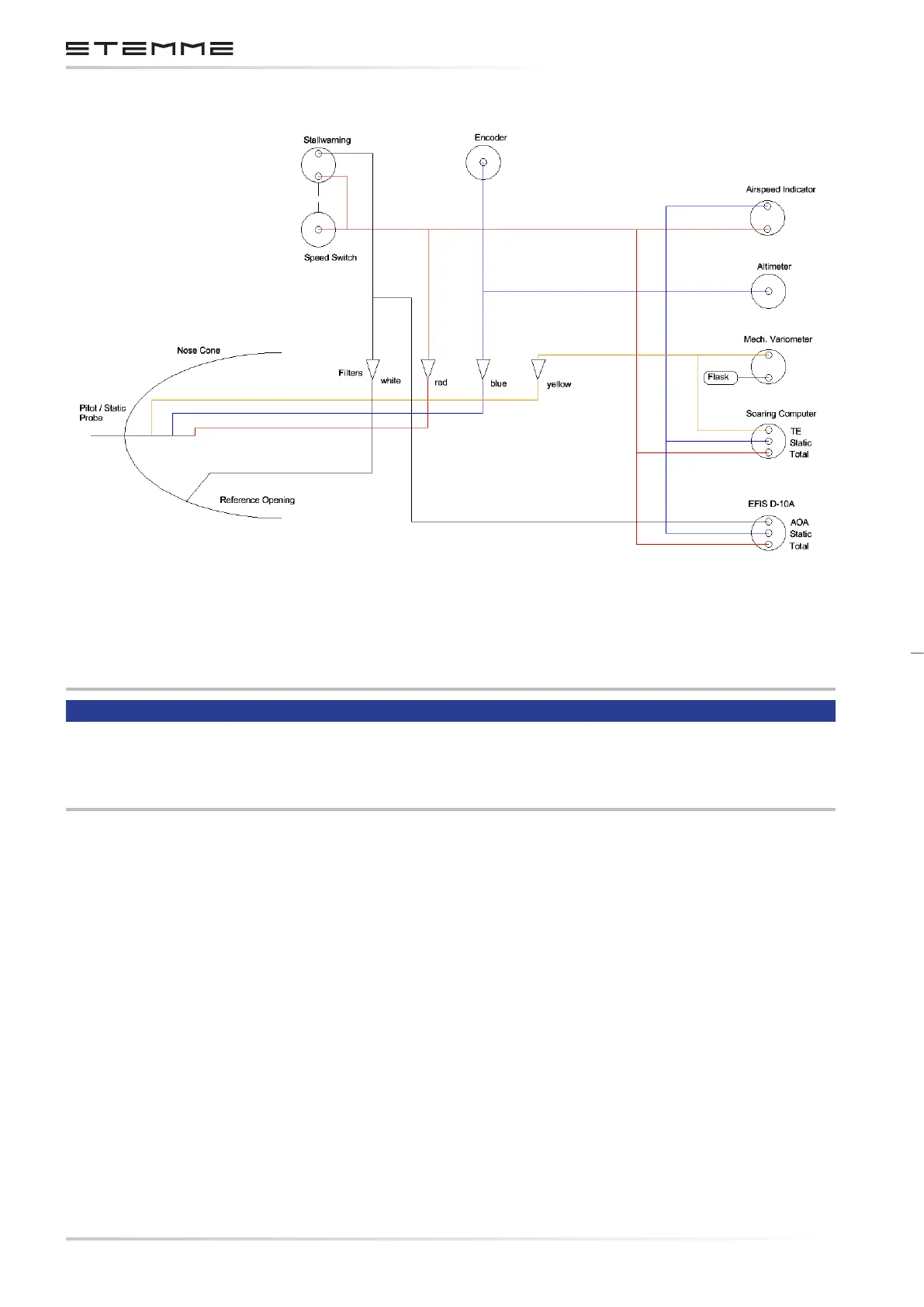

Figure 3.6.a
Pitot and Static Pressure System
NOTICE
Any line must be as short as possible.
The water/separator lters must always be located upstream of the device and upstream of any
junction.
