Steris 4085 - 1.2 Symbols on Hand Control; Table 1-1: Definition of Symbols on Surgical Table (Contd); Table 1-2: Definition of Symbols on Hand Control

1-6
150832-639 Operating Manual Safety Precautions
1.2 Symbols on Hand
Control
Table 1-2 and Table 1-3 are keys to the symbols appearing on the
STERIS 4085 General Surgical Table Hand Control and Hand Control
LCD Display.
W Power Rating
SN
IPX4
Serial Number of the Unit
Splash-Proof Equipment
INTELLIPOWER
®
Dual Power System Power Panel
(Battery Charge/Discharge Status)
Powered By Battery
Table 1-1. Definition of Symbols on Surgical Table (Cont’d)
Symbol Definition
CHARGE BATTERY
INTELLI POWER

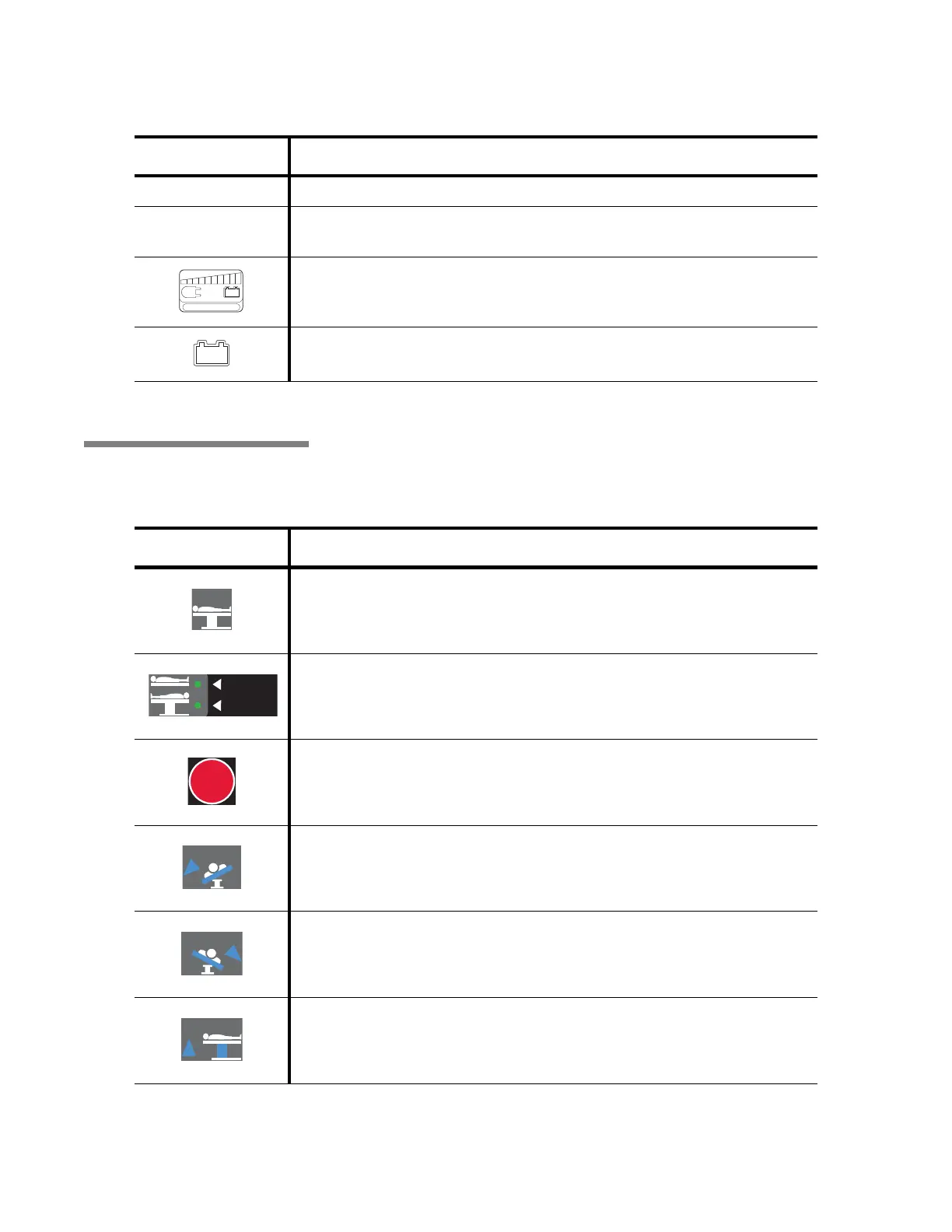

Table 1-2. Definition of Symbols on Hand Control
Symbol Definition
Move Tabletop to Level
Patient Orientation on Surgical Table (Reverse/Normal)
Stop All Table Articulation
Tilt Tabletop Left
Tilt Tabletop Right
Tabletop Up (Height Up; Raise)
LEVEL
NORMAL
REVERSE
STOP
TILT LEFT
TILT RIGHT
HEIGHT UP
