Steris 4085 - Figure 4-3. STERIS 4085 General Surgical Table Primary Hand Control

4-4
150832-639 Operator Manual Operating Instructions

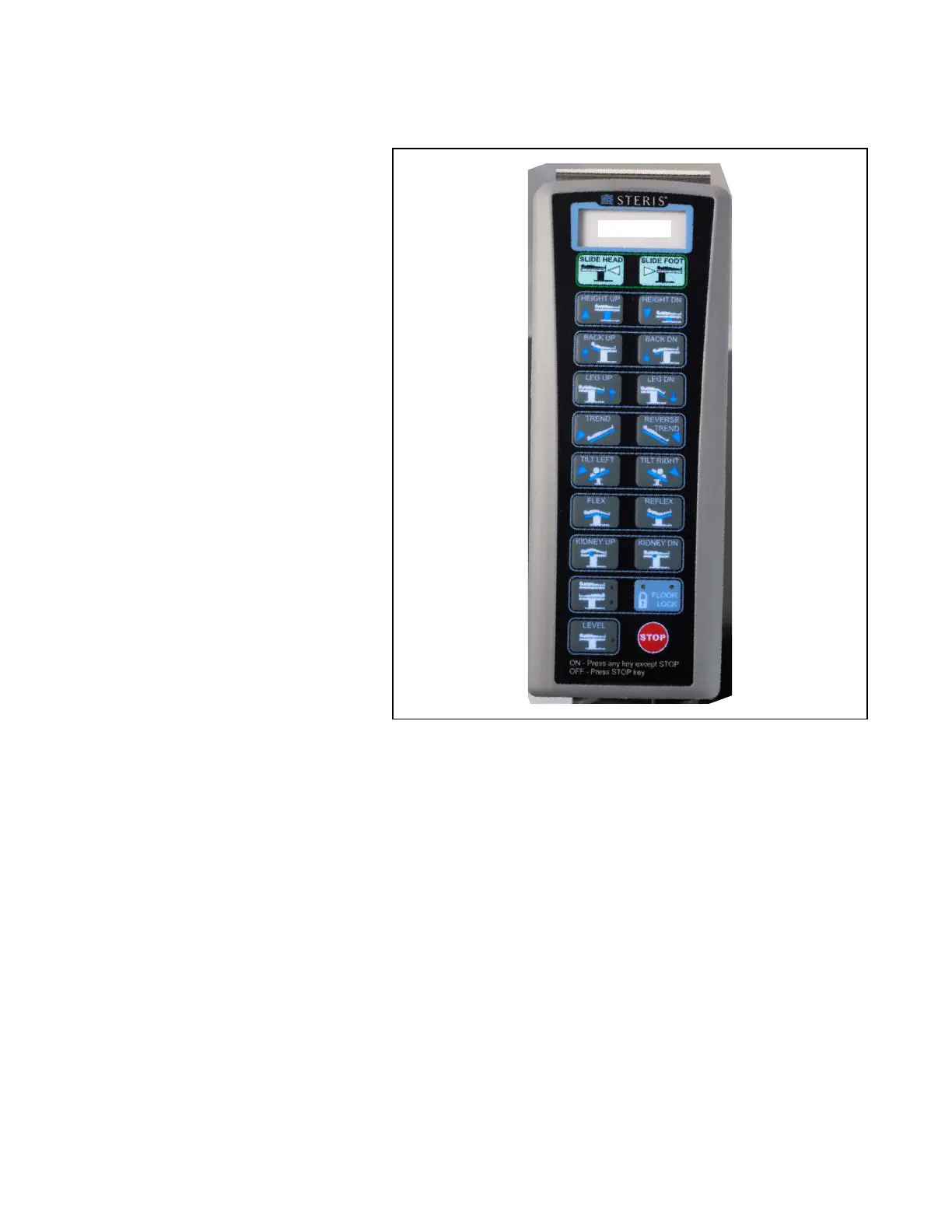

Figure 4-3. STERIS 4085 General Surgical Table
Primary Hand Control
SLIDE FOOT: When depressed, Zip-Slide moves tabletop toward
foot end. When slide returns to central ("0") position, movement
stops for one second before continuing. LCD Display Slide Head
ICON (refer to Table 1-3) displays. An ICON is not displayed at
center (“0”) position.
HEIGHT UP: When depressed, the entire tabletop rises.
HEIGHT DN: When depressed, the entire tabletop lowers.
TREND: When depressed, the head end of the tabletop lowers; or,
foot end raises.
REVERSE TREND: When depressed, the head end of the tabletop
rises; or, foot end lowers.
TILT LEFT: When depressed, the tabletop rolls to the left (patient's
left or viewing the table from the head end).
TILT RIGHT: When depressed, the tabletop rolls to the right
(patient's right or viewing the table from the head end).
LCD Display
