150832-639 Operator Manual Operating Instructions
4.8 X-Ray Top
Installation
The STERIS 4085 General Surgical Table is designed to enable
installation of an X-ray top to allow use of X-ray cassette film. Attach
the four-part X-ray top as follows (see Figure 4-9):
1. Carefully remove X-ray top sections from packing container.
2. Remove pads from tabletop (see S
ECTION 4.7, TABLE PADS).
3. Position X-ray top section over corresponding tabletop section,
aligning posts to mounting holes.
4. Press down on X-ray top section until a "click" is heard.
5. Ensure X-ray top sections are securely mounted by gently
pulling up on section.
6. Reinstall tabletop pads.
7. Remove and store X-ray top by reversing above steps.

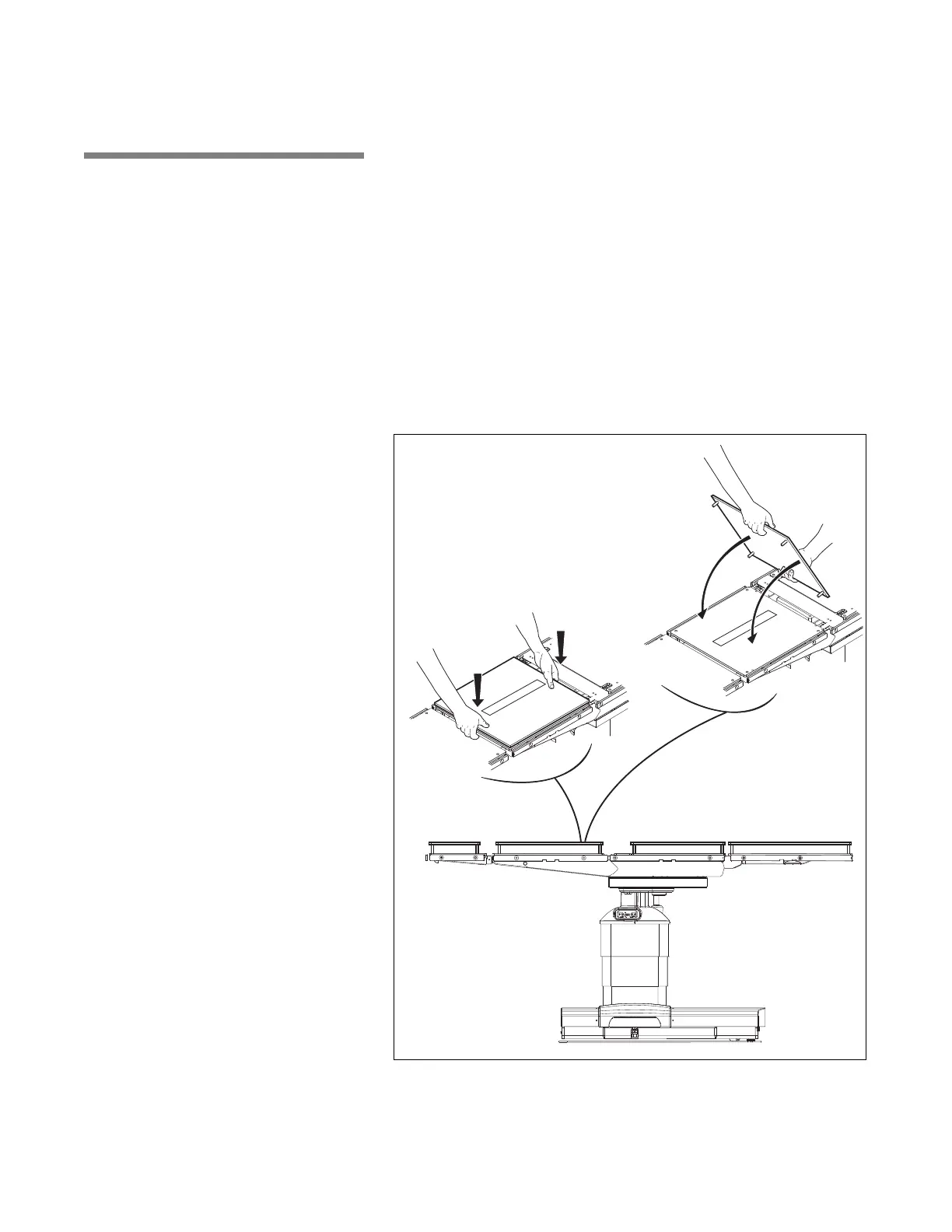

Figure 4-9. X-Ray Top Installation (Typical)
Ensurecapscover
socketswhennotin use.
SERVE
C-MAX 10
2
1
CLICK
LLING -RA TOP
p
ds and stow it with care.
