Overview 3

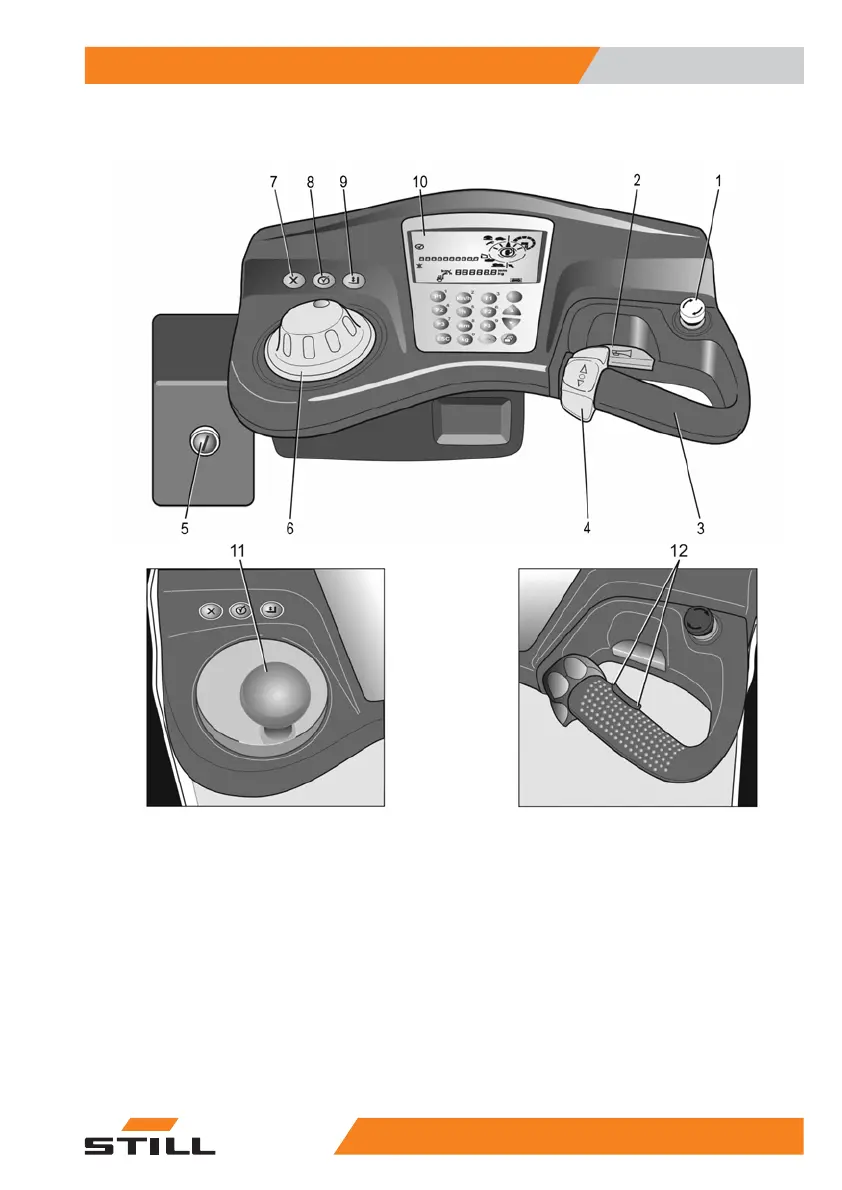

Operator´s console
Operator´s console
1 Emergency stop switch
2 Horn button
3 Handhold and sensor surface for two-hand
operation
4 Operating lever – forward/reverse drive
5 Key switch
6 Steering knob and sensor surface for
two-hand operation
7 Special function preselection button*
8 Override button, e.g. to release the brake
following automatic braking or to bridge
intermediate lift cut-out*
9 Preselector button additional lift
10 Display field for truck operating status
11 Steering wheel* and sensor surface for
two-hand operation
12 Operating rocker switch for cab lift or addi-
tional lift - lower
*Option
