4 Operation
Load pick-up

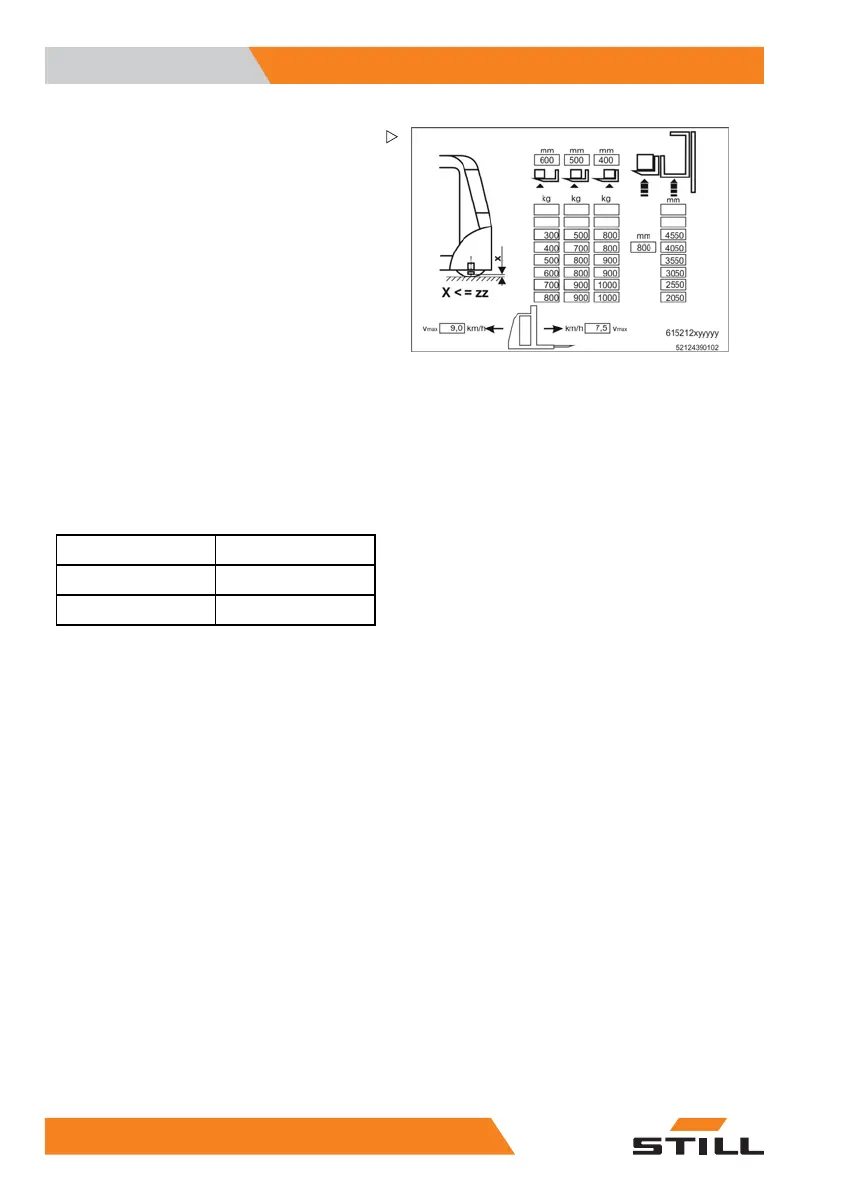

Diagram of permissible loads
A diagram of permissible loads is attached in
the cabine. The diagram of permissible loads
(1) and the stipulated load-bearing capacity
restrictions to be observed under certain
application conditions must be strictly adhered
to. Failure to adhere to the stipulated limits
can serve to impair the stationary stability of
the appliance.
Of course, this applies also to the weight
accruing as a result of the goods in the
consignment.
Example
Exampleforatruckwithalowsinglemast
Cabin floor lifting heiht max.4550mm
Auxiliary lift lifting h
eight plus 800mm
The distance of load centre from heel of fork,
400 mm
max load 800 kg
500 mm
max load 500 kg
600 mm
max load 300 kg
Increasing liting height and increasing dis-
tance of the loadcentre, reduce the load ca-
pacity of the truck
The data refering to the actual situation can be
found in the diagram of permissible load.
66
5213 804 2501 EN - 01/2016
