5 Maintenance
Securing the load support
Securing the load support
DANGER
Risk of accident
Before carrying out any work on the hydraulic
system, it must be depressurised by lowering the
load support to the ground.
Before anyone may proceed under the raised cab, a
mechanical safety device must be installed, such as
a suitably strong brace around the mast traverses
or a jack.

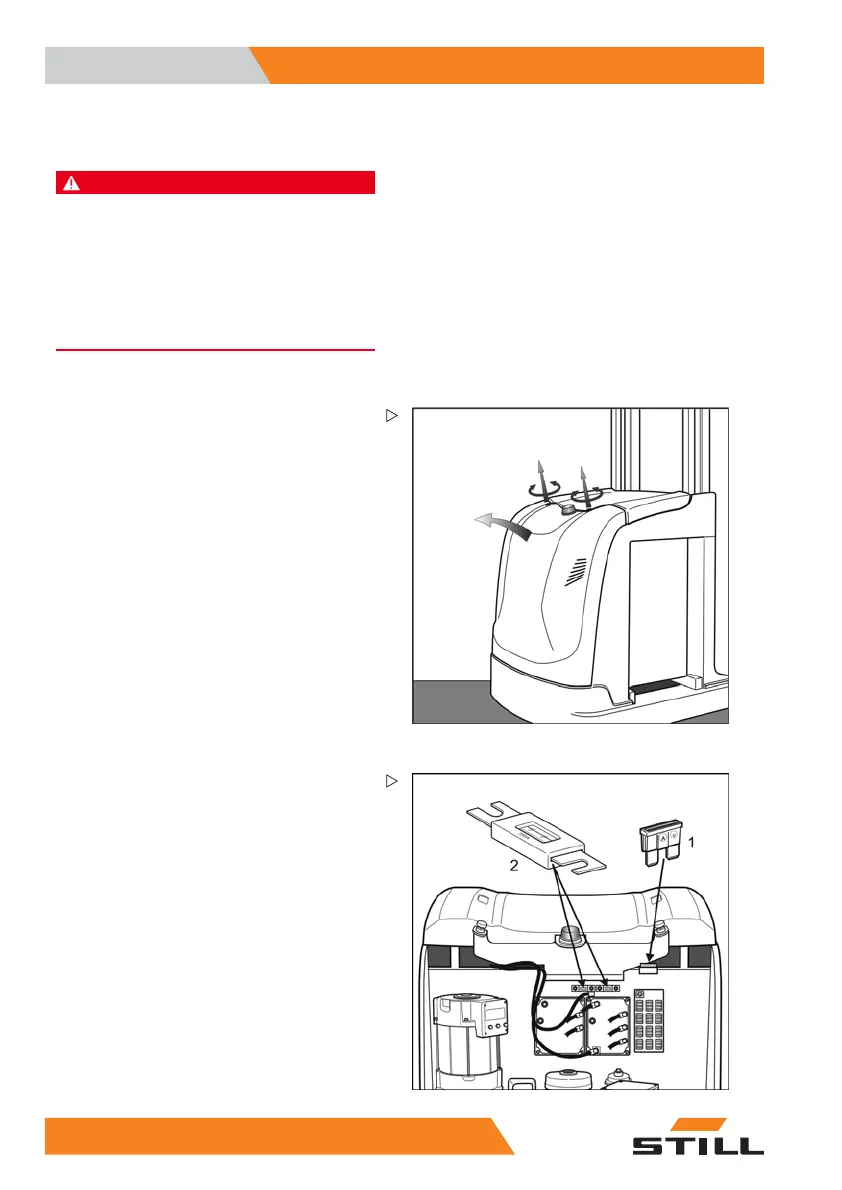

Removing the hood
To gain access to the control compartment,
the hood must be removed.
– Remove the two plastic screws. Turn
anti-clockwise to open.
– Lift the hood upwards out of the latch and
place on one side. The hood is very light
and can consequently be removed without
using any special aids.
The hood is mounted in reverse sequence.
Place the hood carefully into its guide and
latch mechanism and hand tighten the plastic
screws.
Fuses
(1) Primary current fuses
• 1F1 355A
• 3F1 35A
(2) Control current fuses
• F2 7,5A F3 7,5A, Battery voltage
• F4 10A, Battery voltage
• F5 10A, 24V
• F6 10A, 24V
• F7 5A, 24V
• F8 5A, 24V
• F9 5A, 24V
• F10 5A, 24V
