4 Operation
General commissioning
Replacing the battery using a truck

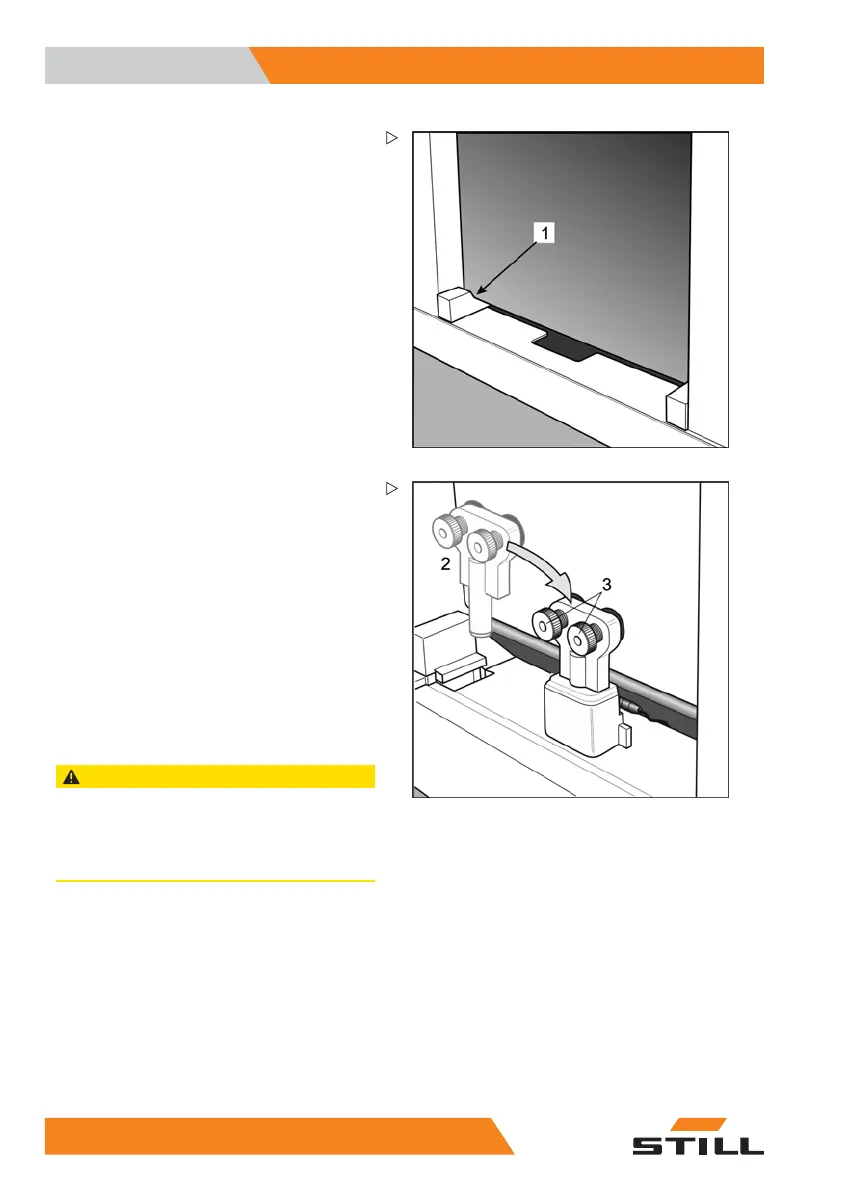

As standard, the battery rests in a recess
intended for this purpose in the chassis (1).
The battery can be replaced using a truck.
In order to do this, lift the battery sideways
out of the recess using a truck with sufficient
load-bearing capacity and suitable lifting
accessories.
Replacing the battery using a battery
change frame
Alternatively, the battery rests on roller chan-
nels* and can be installed and removed
from the side using a battery change frame*.
Pre-assembled plates with clamping screws
secure the battery against rolling out to the
side.
• Pre-assembled pl
ate removed (2)
• Pre-assembled plate inserted and clamp-
ing screws tightened (3). Ensure that the
clamping screws are tightened symmetri-
cally on both sides.
CAUTION
Risk of damage to property
Before each shift, check that the battery lock is in
perfect condition and that it functions correctly.
*Option
48
5213 804 2501 EN - 01/2016
