Stober SC6 Series Commissioning Instructions

7 | Connection STÖBER
44
11/2017 | ID 442793.00
Resolver
Socket Pin Designation Function
8|7|6|5|4|3|2|1
15|14|13|12|11|
10|9
1 Sin+ Sin input
2 R1 Ref− Resolver excitation signal
3 Cos+ Cos input
4 — —
5 — —
6 R2 Ref+ Resolver excitation signal
7 — —
8 — —
9 Sin− Inverse sin input
10 — —
11 Cos− Inverse cos input
12 — —
13 — —
14 — —
15 — —

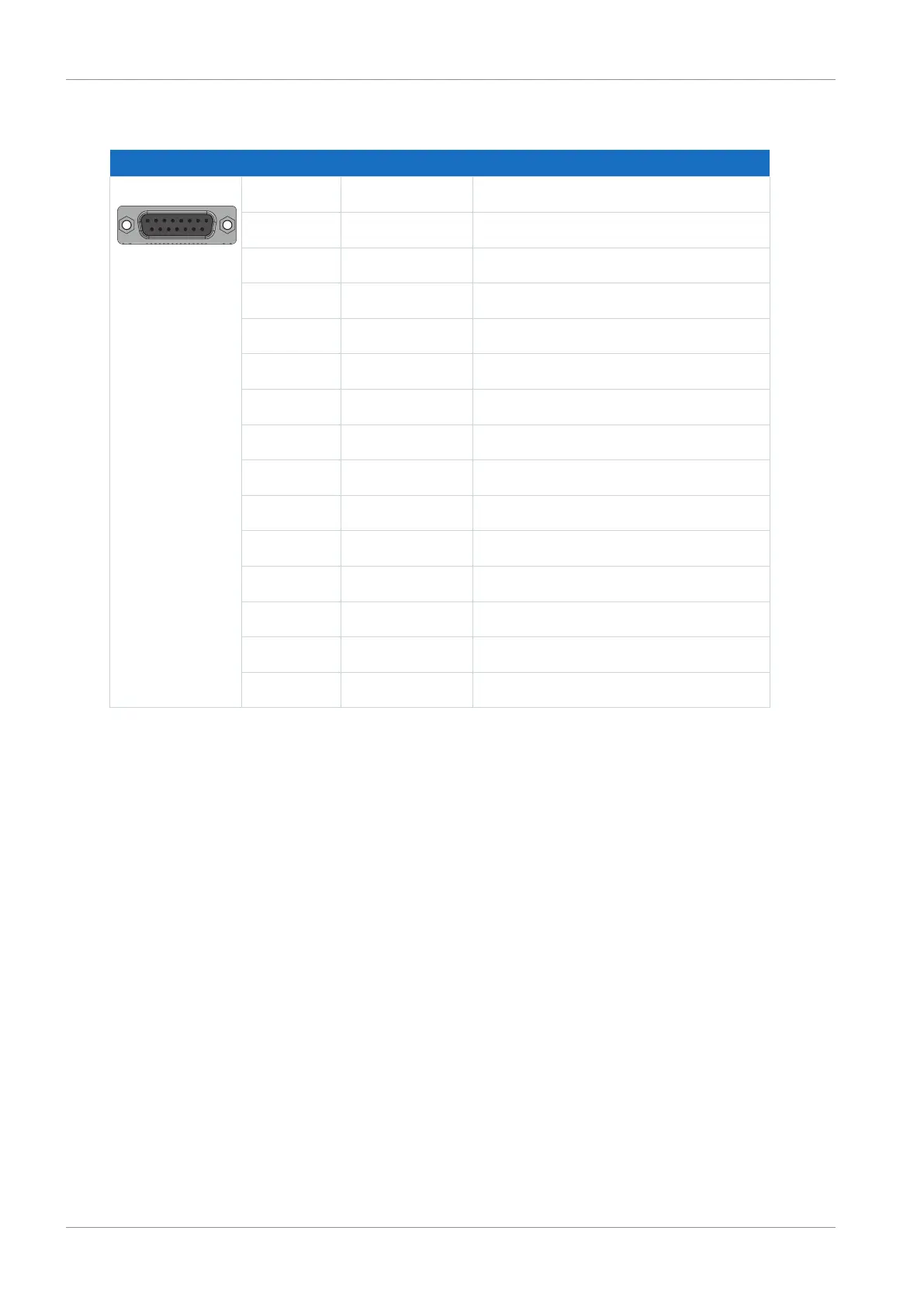

Tab. 32: X4A connection description for resolvers
