Stober SC6 Series Commissioning Instructions

STÖBER 7 | Connection
11/2017 | ID 442793.00
45

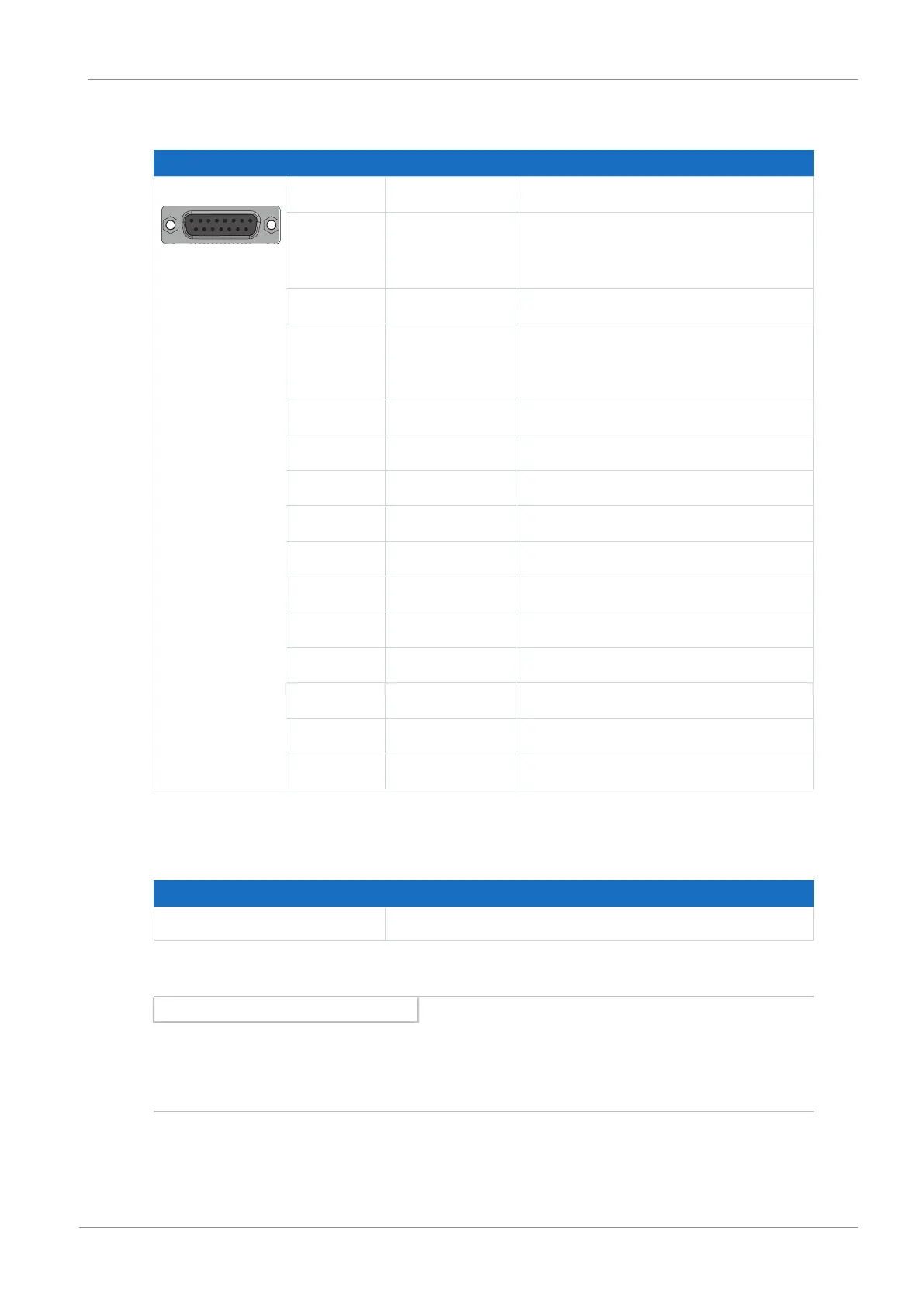

HIPERFACE DSL encoders
Socket Pin Designation Function
8|7|6|5|4|3|2|1
15|14|13|12|11|
10|9
1 — —
2 DSL− Inverse HIPERFACE DSL signal (motor
temperature sensor evaluation over DSL
communication)
3 — —
4 DSL+ HIPERFACE DSL signal (motor
temperature sensor evaluation over DSL
communication)
5 — —
6 — —
7 — —
8 — —
9 — —
10 — —
11 — —
12 — —
13 — —
14 — —
15 — —
Tab. 33: X4A connection description for HIPERFACE DSL encoders
Cable requirements
Feature All sizes
Max. cable length 100m, shielded
Tab. 34: Cable length [m]
Information
To ensure proper functionality, we recommend using cables from STOBER that are matched to
the complete system. In case of use of unsuitable connection cables, we reserve the right to
reject claims under the warranty.
