Objet350 User Guide 6 Operating and Maintaining the Objet350 3DPrinter
DOC-17001 Rev.G 6-57
InstallingtheNewHead
15.Inspectthereplacementhead,andmakesurethattheO-ringsealsarein
place(seeFigure6-76onthepreviouspage).
16.Gentlyinsertthereplacementheadintothevacantslotintheprintblock,
andpushtheprint-headdrivercardintoitssocket.
Note:Makesuretoinserttheheadwiththedrivercardfacingitssocket,inthe
rearoftheprintblock.

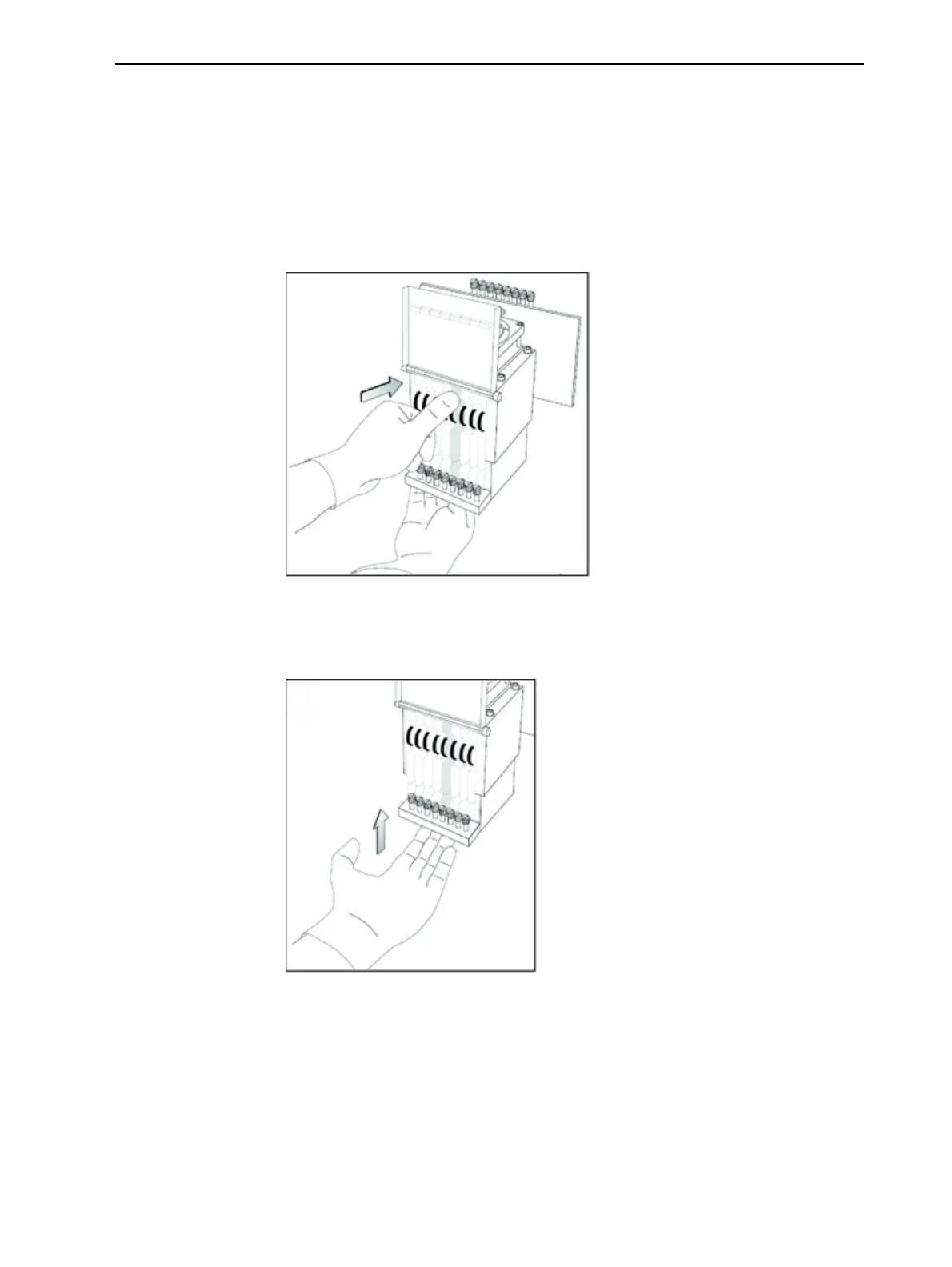

Figure6-78Insertingtheprint-headdrivercardintoitssocket
17.Pushtheheadupuntilyouhearitclickintoplace,inbothfrontandrear
holders.
Figure6-79Pushingtheheadintoplaceintheprintblock
18.Lowerthedooroftheprintheadcompartment,andtightenthescrewsto
lockitinplace.
19.Tightentheupperandlowerscrewsthatsecuretheprintheadintheprint
block(seeFigure6-72onpage6-54).
Note:Hand-tightenthesescrews.Donotuseascrewdriver.
