8.6 AC-LOADS
8.6.1
General information
The AC-Loads is where the user electrical consumptions are connected. This side back-up by the
battery and solar when the AC-source is not present.
The output voltage is 230V phase to neutral and 400V phase to phase in standard three phased
configuration (default). The frequency is fixed at the nominal frequency of 50Hz for the NX3 by
default.
The AC-loads are monitored and recorder in the datalog.
AC-coupling of grid inverters is not permitted for the moment.
8.6.2
AC-Loads Information

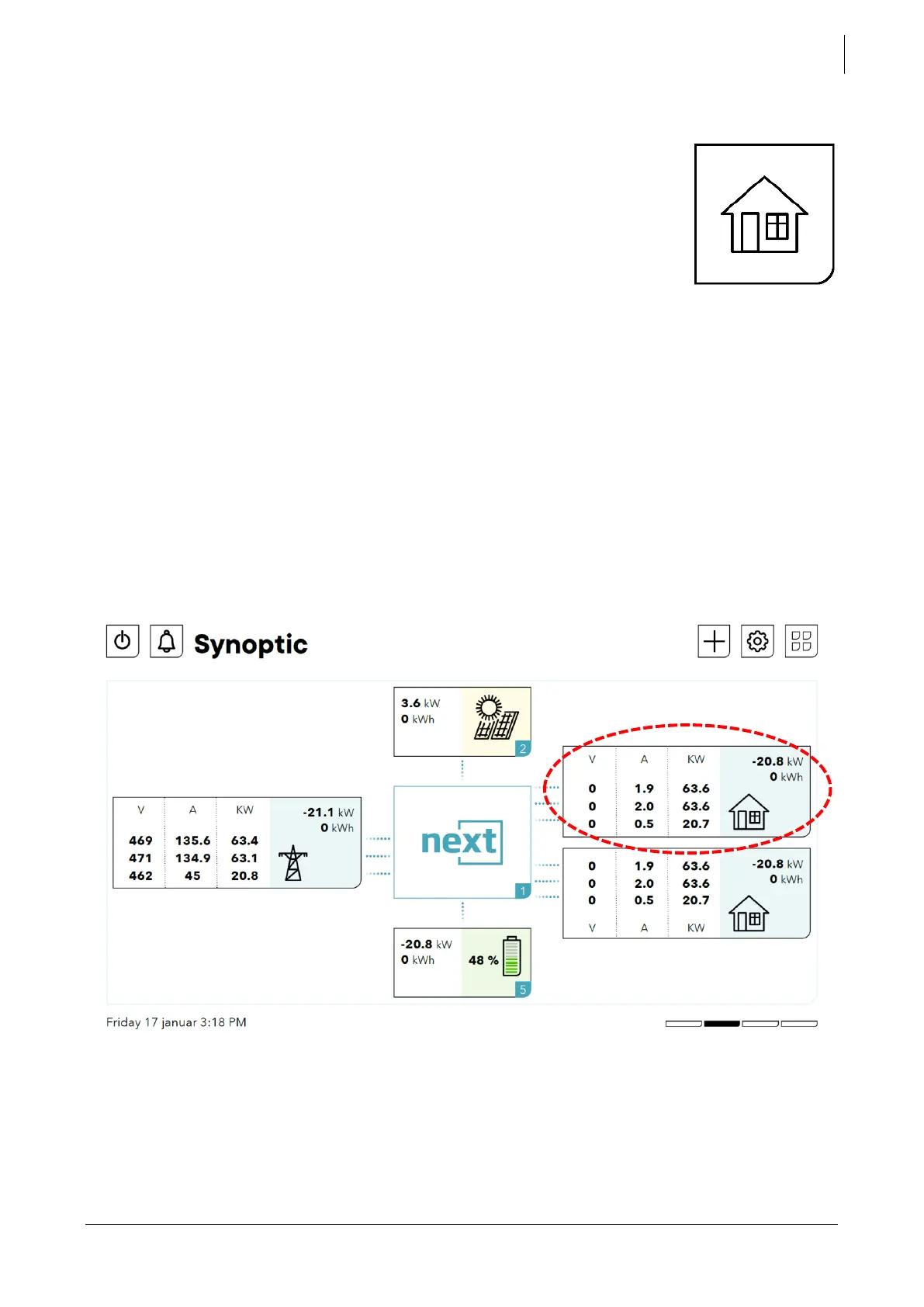

The general information on output is seen on the synoptic:
Clicking on the component AC-loads give you access to the level 2 and see the details about AC-
loads.
