94 V 1.3 © Studer-Innotec SA next3 Tech manual
8.3.4
AC-source Settings for Genset
The wizard is mandatory for a proper setting of AC-source as many points are configured
during commissioning and cannot be changed later. Carefully read the questions to avoid
mistakes in your answers.

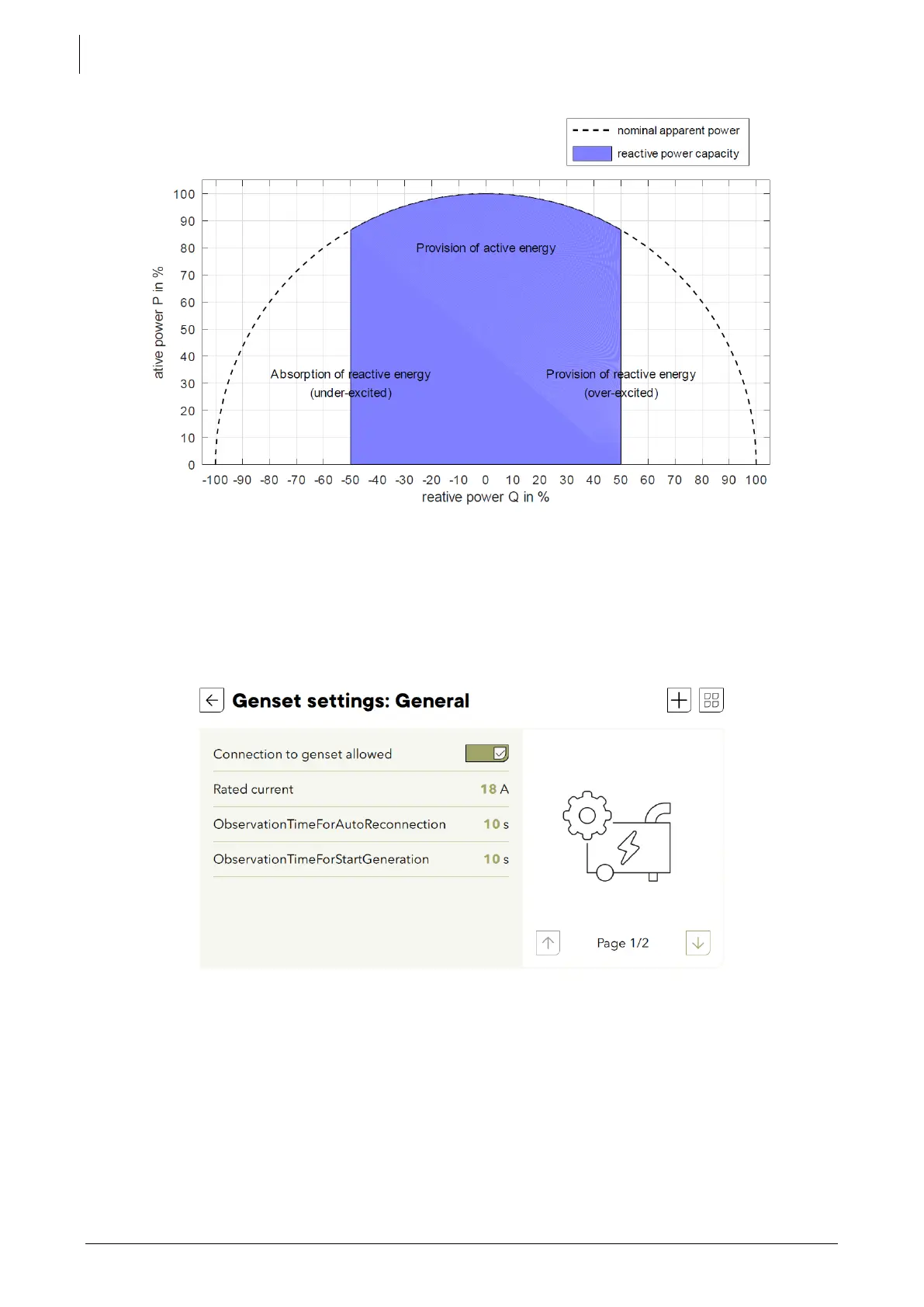

If the source is a genset, the available settings are given on 2 screens:
The rated current taken on each phase can be changed on the fly when the generator is running
to adapt to its real ability.
The Observation Time can be understood as a delay for the genset to warmup.
The tolerances on the voltage fluctuations of the genset can be adapted:
