4.4 UNPACKING AND MOUNTING
When unpacking, check that the next3 has not been damaged during transport and that all
accessories listed below are present. Any fault must be immediately reported to the product
distributor or the contact mentioned at the back of this manual. Check carefully the packaging as
well as the next3.

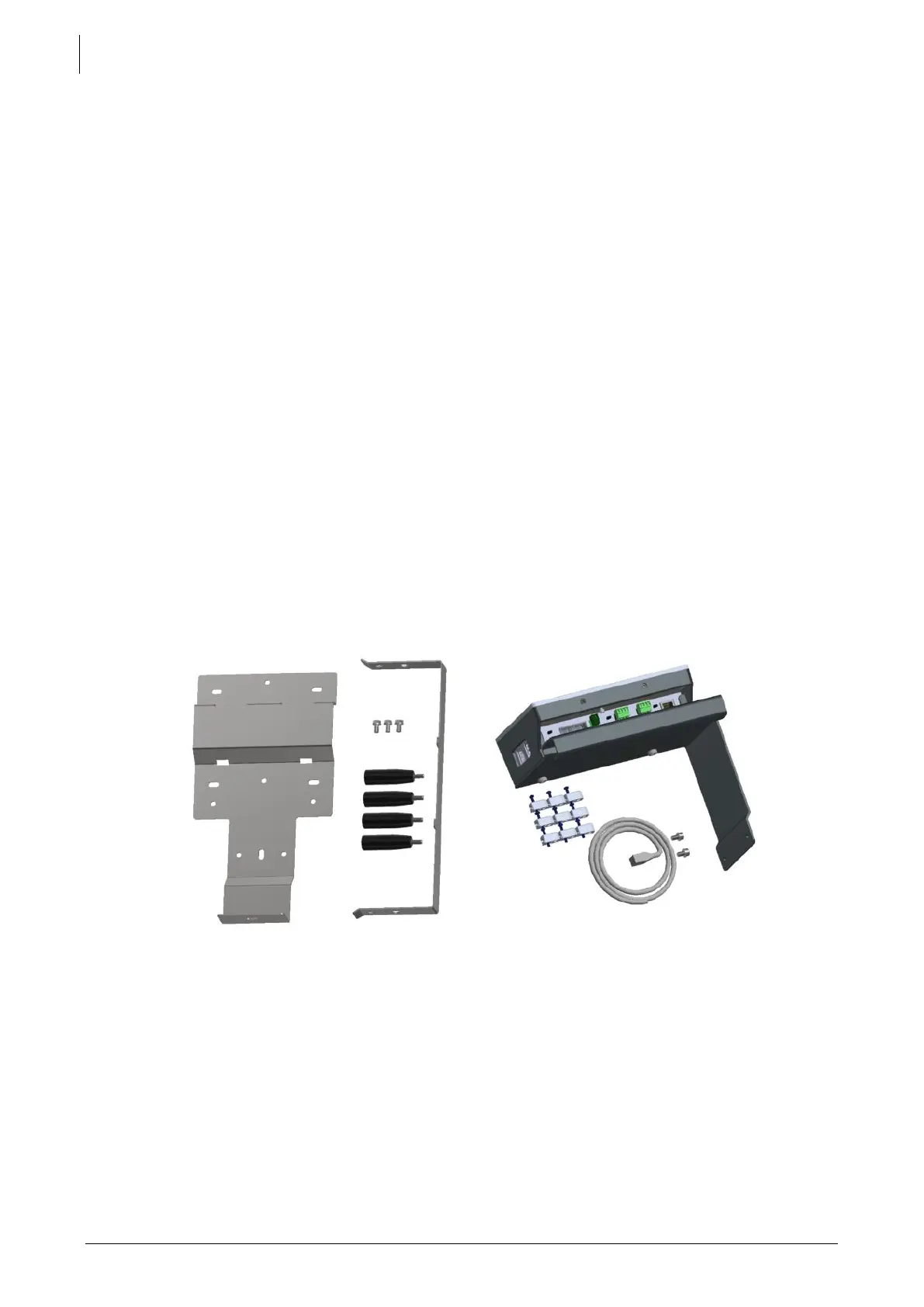

Contents:
• Quick Installation Guide and user interface guide
• Next3 inverter-charger
• Nx-interface with
o Mounting structure
o USB stick with detailed technical manual, to be used for datalogging with the nx-
interface.
o Kit for front panel fixing
o 1m communication cable
• Sunclix connectors for PV cables (4 pairs)
• Male connectors for
o CAN lithium battery communication
o RS485
o 2 pieces for AUX contacts
o 1 piece for CMD inputs
• Temperature sensor nx-tempSensor (with male connector)
• Mounting plate (for wall mounted version) with 1 screw for fixing on the body of the next3.
The screws for the wall are not provided. Choose the appropriate screws for your wall.
• Fixing belt with 2 screws
• 4 handles
• Cable-glands for battery and AC (for wall mounted version)
4.4.1
Mounting place
Next3 is designed for indoor use (IP30) and the place of installation must satisfy the following criteria:
• Protected from any unauthorised person.
• Protected from water and dust and in a place with no condensation.
• It must not be situated directly above vented lead acid batteries, or in a cabinet with it, due
to corrosive gas.
• No easily inflammable material should be placed directly underneath or close to the next3.
• Ventilation holes must always remain clear and be at least 20cm from any obstacle that may
affect the ventilation of the equipment (see mounting schematics).
• In mobile applications, it is important to select an installation site that ensures the lowest
