Studer Innotec SA
next3
Technical user manual V1.3 © Studer-Innotec SA 71
7.3.3

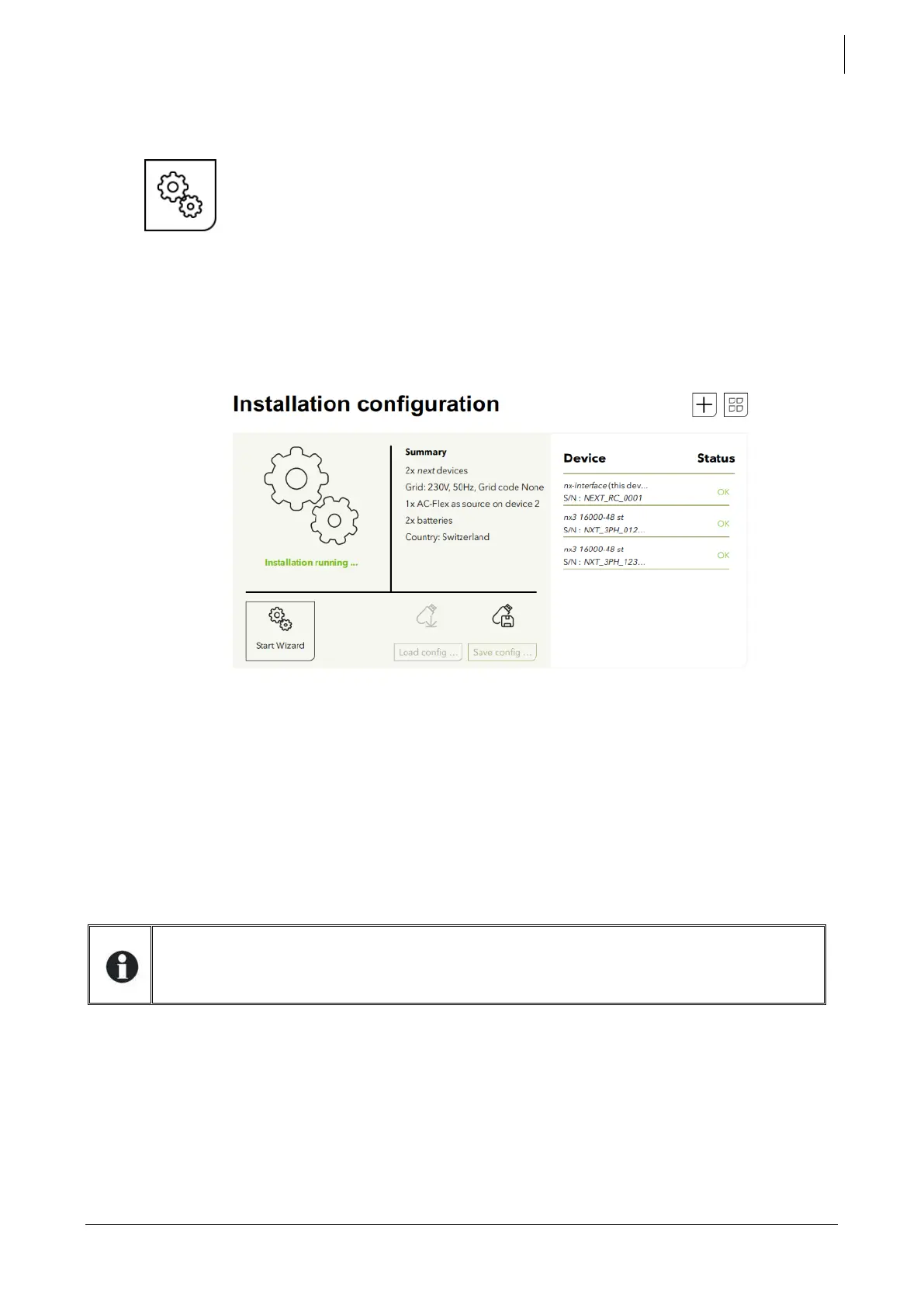

Installation Configuration
In those pages you can reconfigure the next energy system from the start with the wizard,
and also save and export configurations for your backup or to replicate it on other
installations. The configuration pages are available at expert level only.
A summary of the system is available on the main screen and a list of all present devices of
the system is situated on the left. The “Config details” button give access to numerous
detailed technical information (list of all hardware used, list of all FID, …) that may be
necessary for support purposes.
For a factory setting reset, you must run the wizard again. It will reset all the values with the
factory values according to your configuration.
7.3.3.1 Wizard
The standard configuration of the next3 energy system is done with a configuration wizard. It
is possible to modify single settings individually later the pages dedicated to each topic of
the converter. On the first commissioning of the next3, the wizard will be automatically started,
and all steps must be followed. To restart with factory settings, you must run the wizard again
on an installation.
All the settings previously set are forgotten when running a new wizard.
The wizard is automatically launched on the first commissioning of the next3. At the end
of the wizard process, the nx-interface is set back to the basic level. This is necessary to
avoid the change of critical settings later by end customer (grid codes).
To access the wizard, you need the expert level.
