3-20 SPARC Enterprise Mx000 Servers XSCF User’s Guide • August 2009

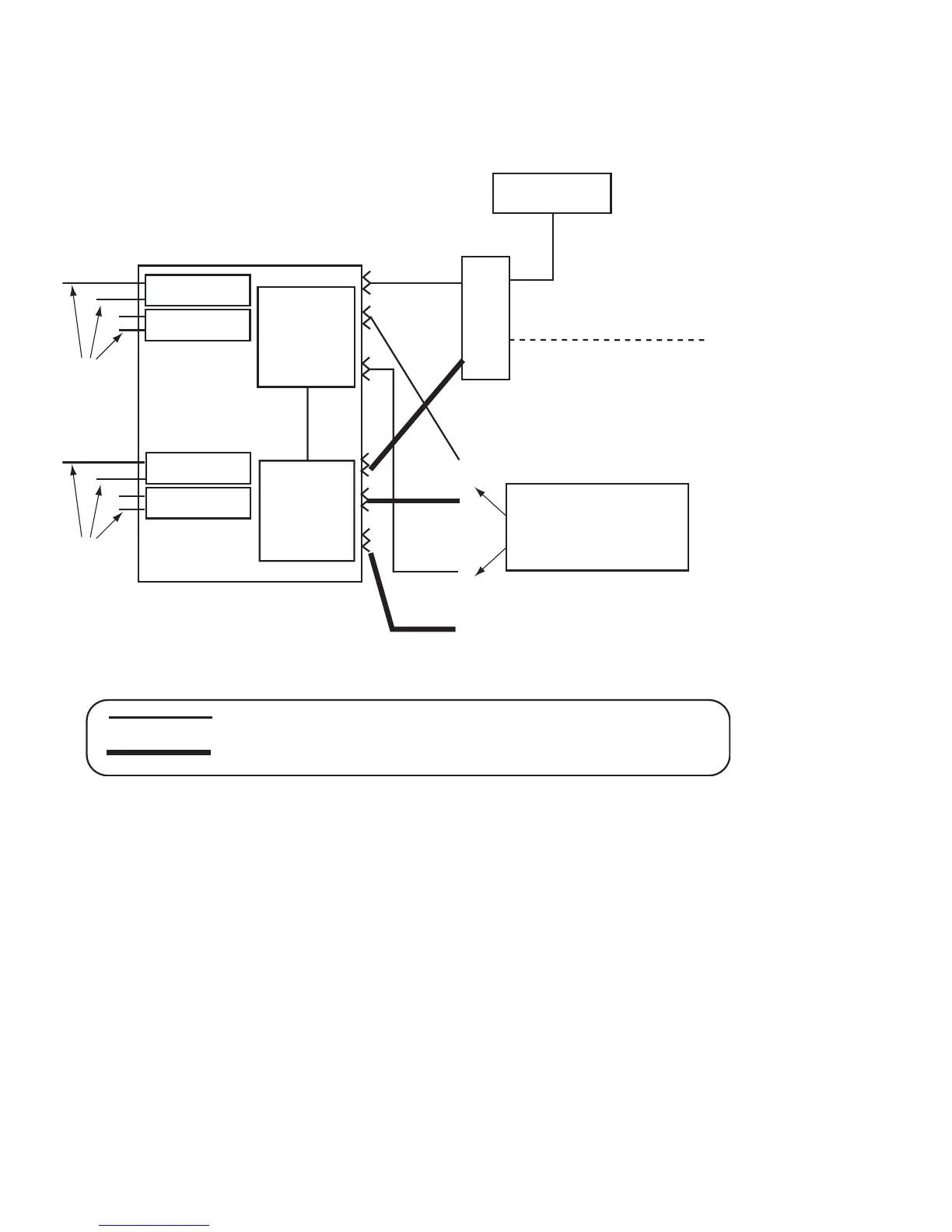

FIGURE 3-8 Example of a Connection With One LAN Port
Port from XSCFU#0
Port from XSCFU#1
(System with redundant XSCFU only)
Fire Wall
Remote Services
Maintenance port
Direct attach port
for initial setup
maintenance
Hub
Serial
Serial
LAN
LAN
Basic cabinet
:
:
User
LAN
User
LAN
DomainID x
DomainID y
DomainID m
DomainID n
XSCFU
#0
XSCFU
#1
