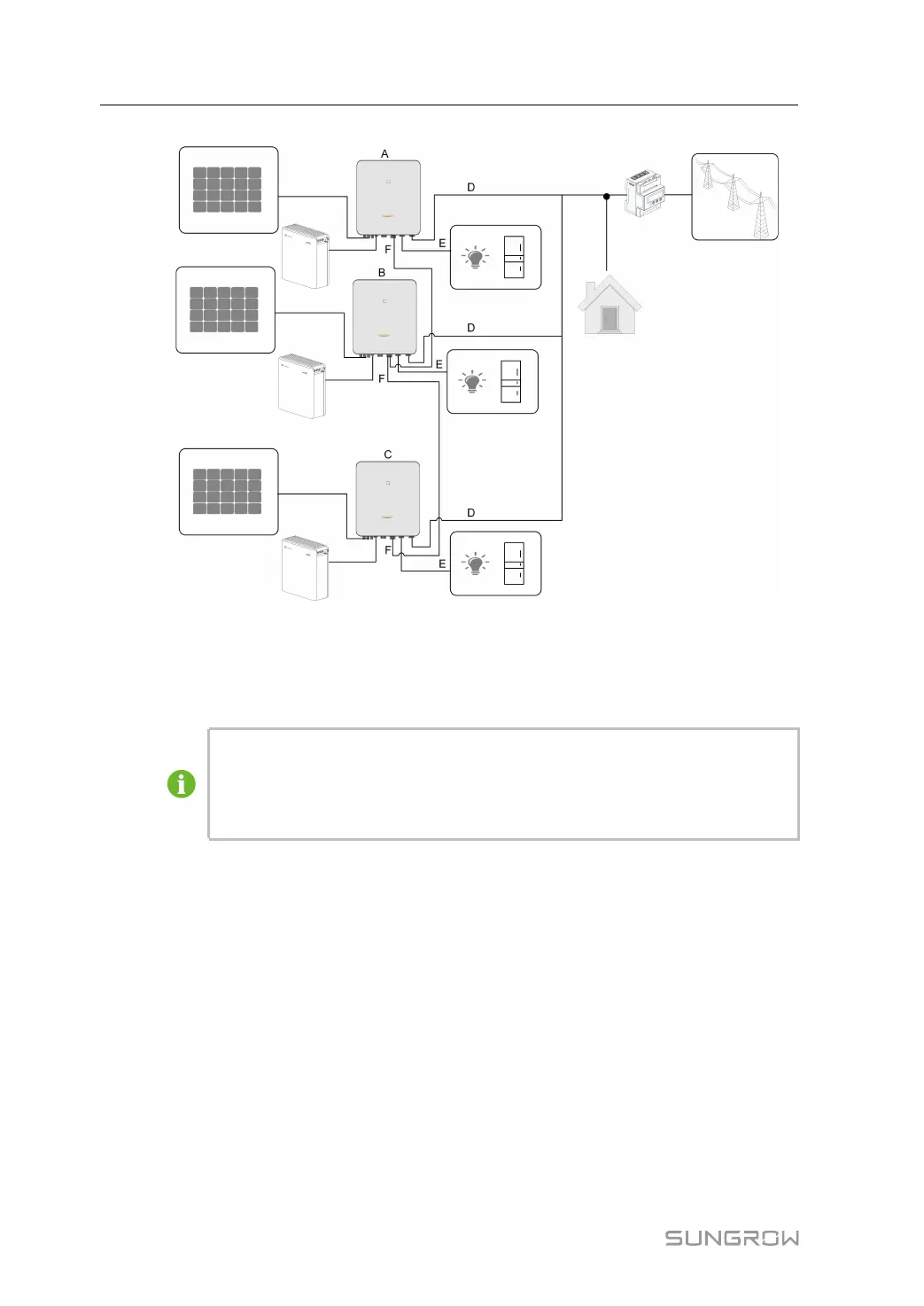

figure 2-4 Parallel PV ESS
(A) Master (B) Slave 1 (C) Slave 2
(D) GRID (E) BACK-UP (F) RS485
Only the inverter GRID terminal can be connected in parallel, the BACK-UP termi-
nal and the battery terminal cannot be connected together, they should be con-
nected to the off-grid load and the battery respectively. The Backup loads of each
inverter should not exceed its nominal power.
Refer to "6.7.3 RS485 Connection" for the cable connection.
In an on-grid parallel system, the master inverter collects information from Smart Energy
Meter and slave inverter and performs the energy management including:
• Feed-in power control.
• Battery charge / discharge
• Maximum power limitation
The following settings are required for the inverter parallel function.
• Feed-in power control. The feed-in power control function refers to "8.5.1 Feed-in Limita-
tion". The PV installation power of the master inverter is the total installation power of the
system, the slave inverters do not need to set the feed-in power.
