50
step 3 Pull cables outwards to confirm whether they are fastened firmly, then tighten the swivel nut
with appropriate torque.
- - End

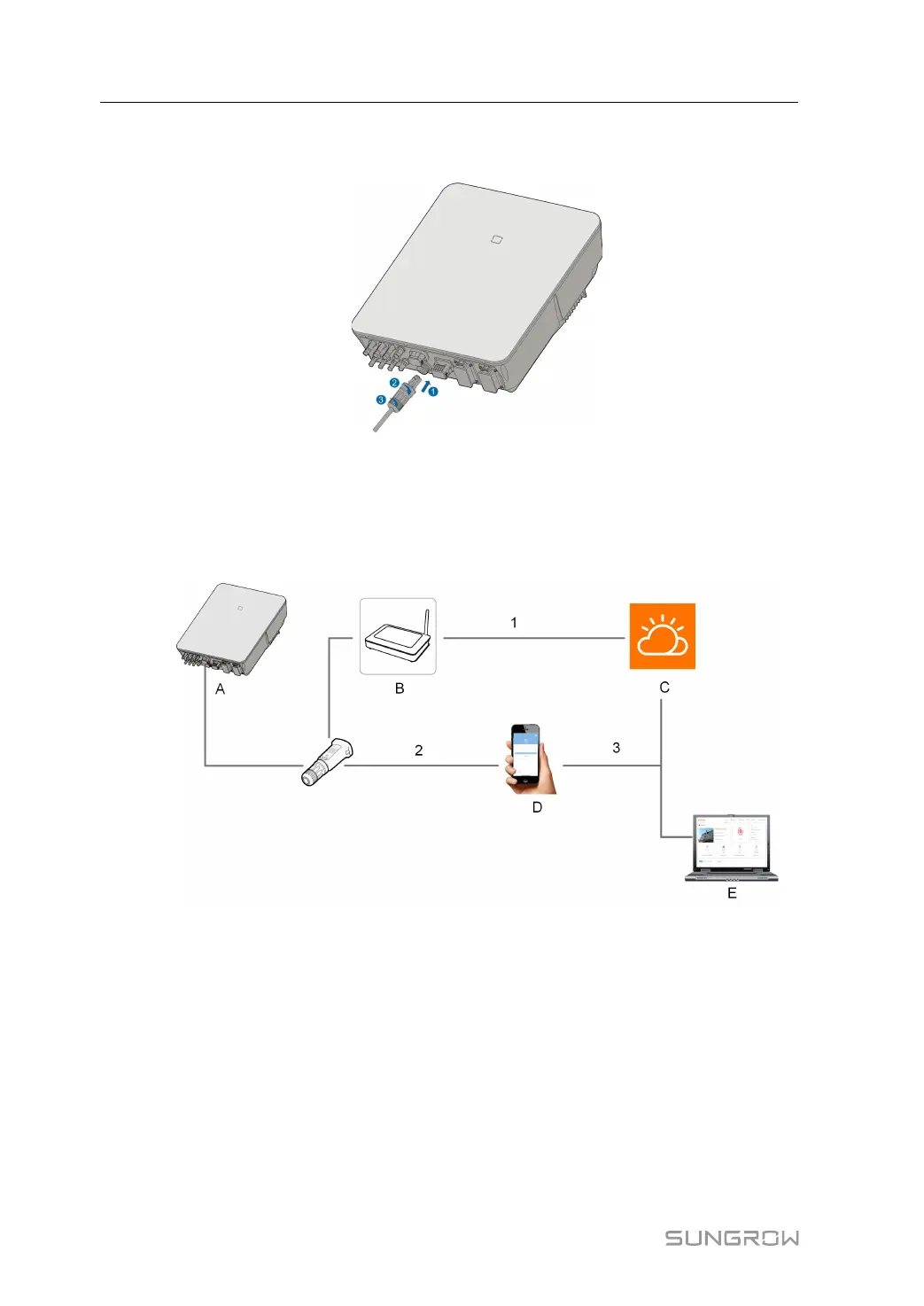

6.7.2 WiNet-S Connection
The WiNet-S module supports Ethernet communication and WLAN communication. It is not
recommended to use both communication methods at the same time.
(A) Inverter (B) Router/Switch (C) iSolarCloud server
(D) iSolarCloud App (E) iSolarCloud
(1) Internet (2) Local access (3) Remote
For details, see the quick guide for the WiNet-S module. Scan the following QR code for the
quick guide.
6 Electrical Connection User Manual
