45

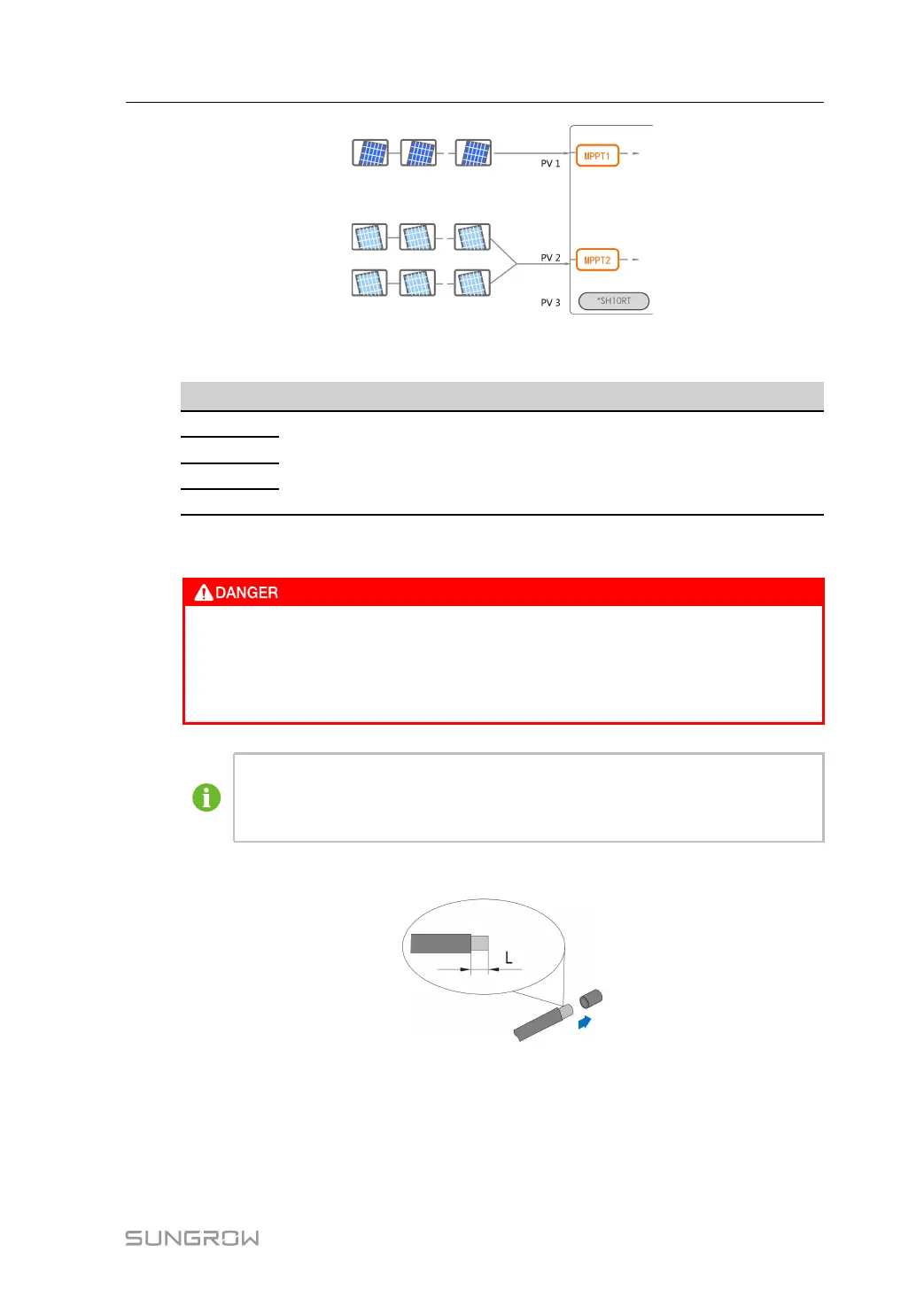

Prior to connecting the inverter to PV inputs, the following electrical specifications must be
met simultaneously:
Model Open-circuit Voltage Limit Max. current for Input Connector
SH5.0RT
1000 V 30 A
SH6.0RT
SH8.0RT
SH10RT
6.6.2 Assembling the PV Connectors
High voltage may be present in the inverter!
• Ensure all cables are voltage-free before performing electrical operations.
• Do not connect the DC switch and AC circuit breaker before finishing electrical
connection.
SUNGROW provides corresponding PV connectors in the scope of delivery for
quick connection of PV inputs. To ensure IP65 protection, use only the supplied
connector or the connector with the same ingress of protection.
step 1 Strip the insulation from each DC cable by 7 mm–8 mm.
step 2 Assemble the cable ends with the crimping pliers.
User Manual 6 Electrical Connection
