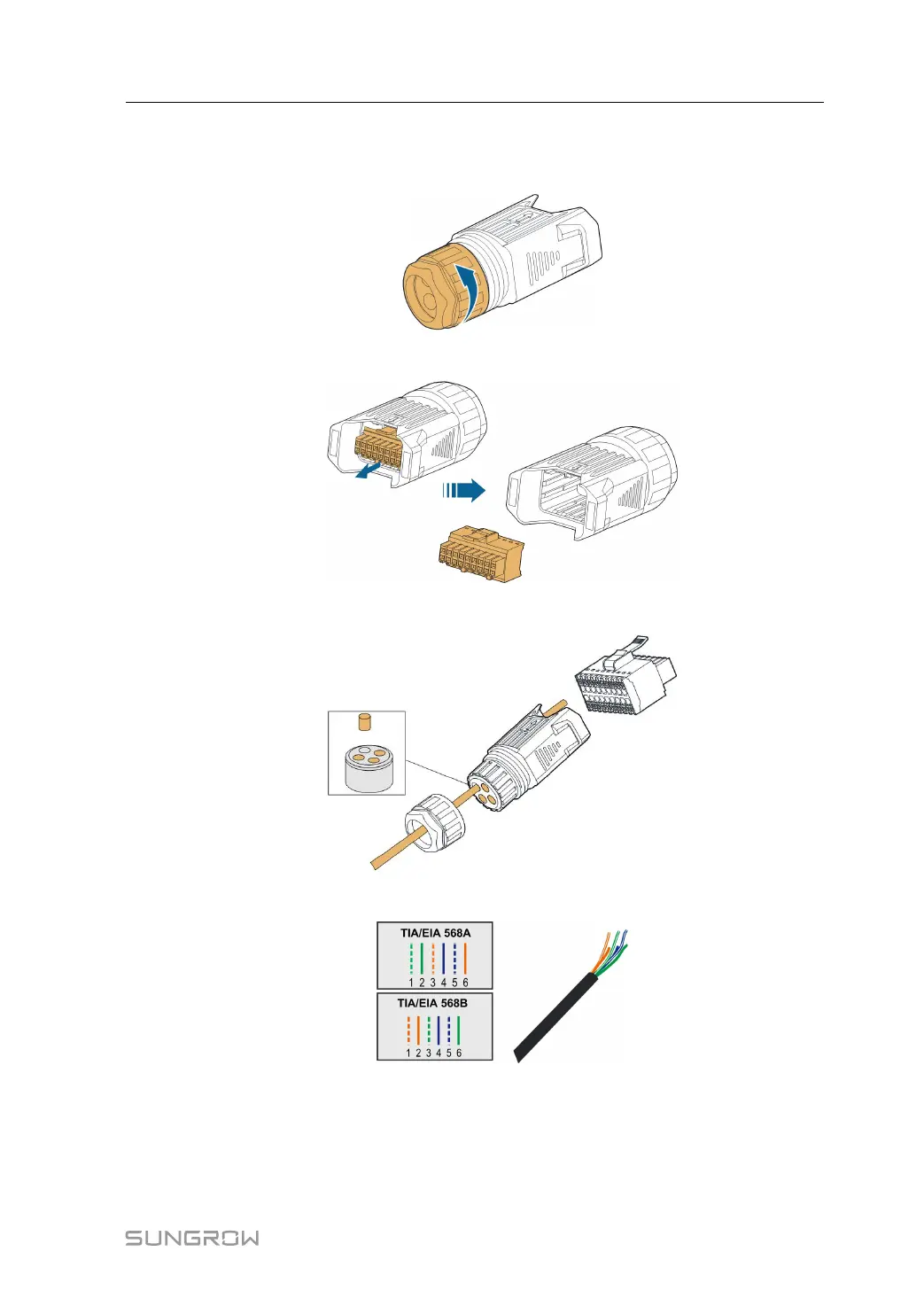

6.11.1 Assembling the COM Connector
step 1 Unscrew the swivel nut from the connector.
step 2 Take out the terminal block.
step 3 Remove the seal and lead the cable through the cable gland.
step 4 Remove the cable jacket by 7 mm–10 mm.
step 5 Plug the wires into the corresponding terminal according the labels on the bottom of the
inverter.
User Manual 6 Electrical Connection
