2.3.1. SYSTEM FLOW
The flow can start either from just the mains or from the solar. For the sake of this illustration, we will start
the flow from solar power
1. If the inverter has two MPPTs and they are combined to make one power source:
1000W2000W
3000W

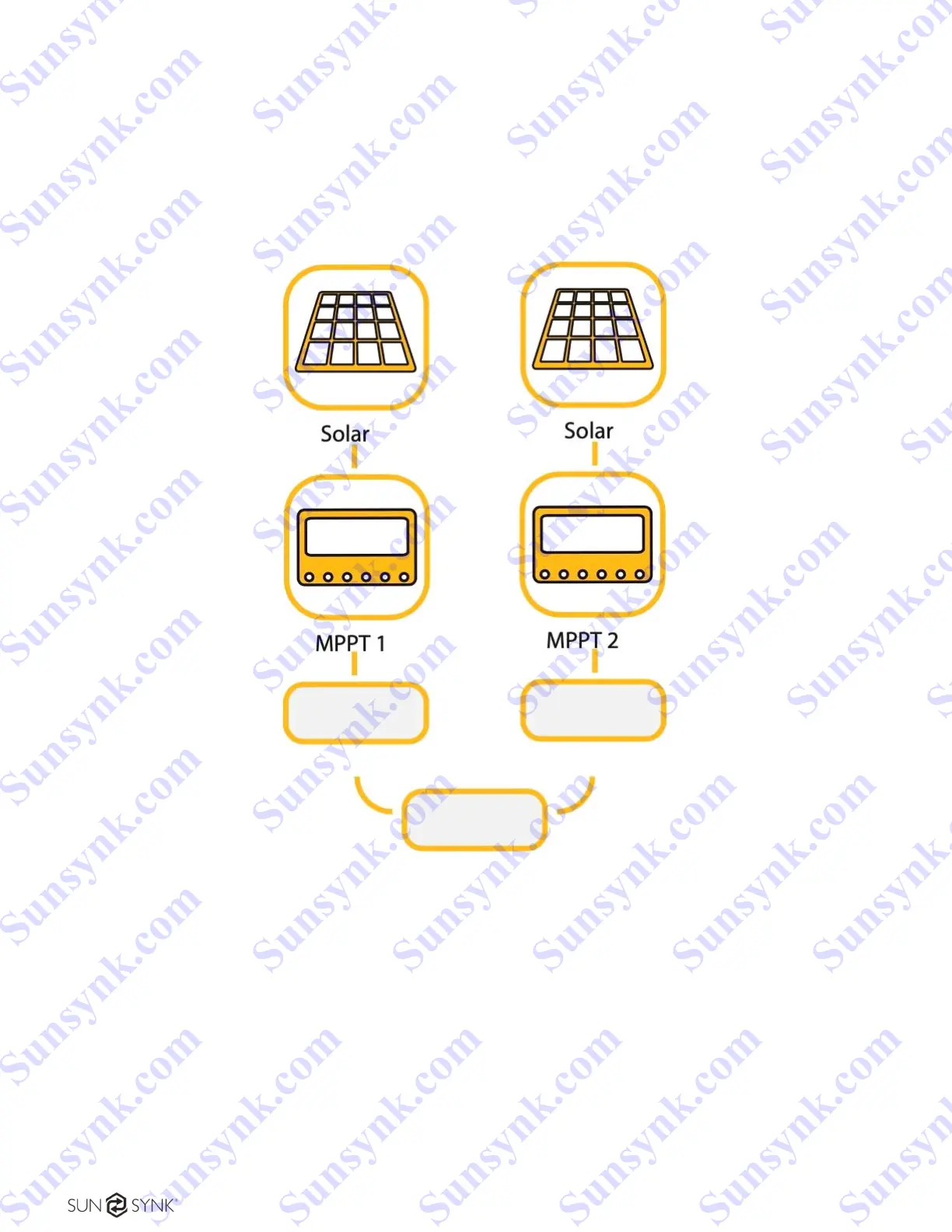

Figure 9 - Flow with combined MPPTs.
2. The output of the MPPTs can be prioritised either to charge the battery or to supply the load. This
is a selectable option:
This is selected via the controller, tick ‘Priority to Load’ to divert the solar power to the load; any surplus
will charge the battery. If you untick, it will prioritise to charge the battery first, and any surplus will power the
load.
