SunSynk 8kW User Manual

Website: www.sunsynk.com E-mail: sales@globaltech-china.com
26

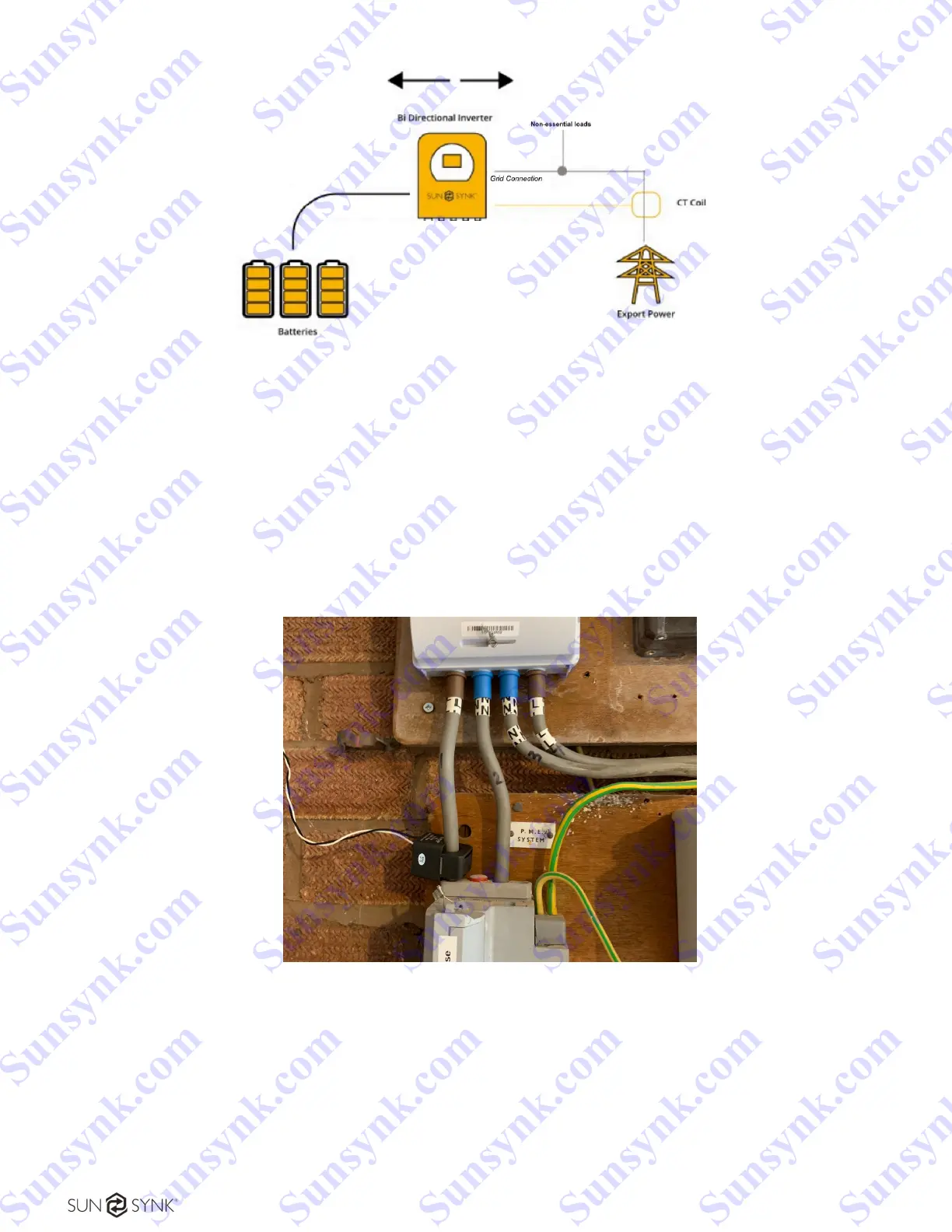

Figure 22 - CT coil connection.
Ideally, you do not want to run the CT coil any further than 10m away from the inverter. But, it will work
up to 20m if you do not have any external interference if you wish to extend. (Please ensure using the same
type of twisted cable).
On the back of the CT coil, there are markings L and K. The current runs from K to L. There is a small
arrow on the CT coil showing you the direction of flow.
Figure 23 - CT coil connections.
It is important that the grid is connected to follow the arrow into the inverter. The CT coil has two coloured
cables: white and black. The white cable is the positive, and the black is negative. Please ensure that they
Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com
Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com
Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com
Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com
Sunsynk.com Sunsynk.com Sunsynk.com
Sunsynk.com Sunsynk.com Sunsynk.com
Sunsynk.com Sunsynk.com
Sunsynk.com Sunsynk.com
Sunsynk.com
Sunsynk.com
Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com Sunsynk.com

SunSynk 8kW Specifications

General

Rated Power	8kW
Max. DC Voltage	500V
Number of MPPTs	2
Max Output Current	35A
Max Efficiency	97.6%
Battery Voltage	48V
Max Charging Current	190A
Max Discharging Current	190A
Frequency	50/60Hz
Max PV Input	10400W
Operating Temperature	-25°C to 60°C
Protection Rating	IP65
Max DC Input Voltage	500V
Max Input Current	22A
Nominal AC Voltage	230V
Communication	RS485
Protection	Overload Protection
Cooling	Fan
