5.2. STATUS PAGE
To access the Status page, click on the 'Battery' or 'AC Load' dial on the Home page.
What this page displays:
Total solar power produced.
MPPT 1 power/voltage/current.
MPPT 2 power/voltage/current.
Grid power.
Grid frequency.
Grid voltage.
Grid current.
Inverter power.
Inverter frequency.
Inverter voltage.
Inverter current.
Load power.
Load voltage.
Battery power charge/discharge.
Solar Column: Shows total Grid power at the top and then details of each of the two MPPT’s below L1 and
L2 voltage.
Grid Column: Shows grid total power, frequency, voltage, and current. When selling to grid the power is
negative. When receiving from the grid, the power is positive. If the sign of the grid and home powers are not
the same when the PV is disconnected and the inverter is only taking energy from the grid and using the HM
CT connected to Limit-2, then please reverse the polarity of the home current sensor. Important: See section
3.4 about the CT coil.
Inverter Column: Showing inverter total power, frequency, L1, L2, voltage, current, and power.
Load Column: Showing total load power, load voltage, and power on L1 and L2.

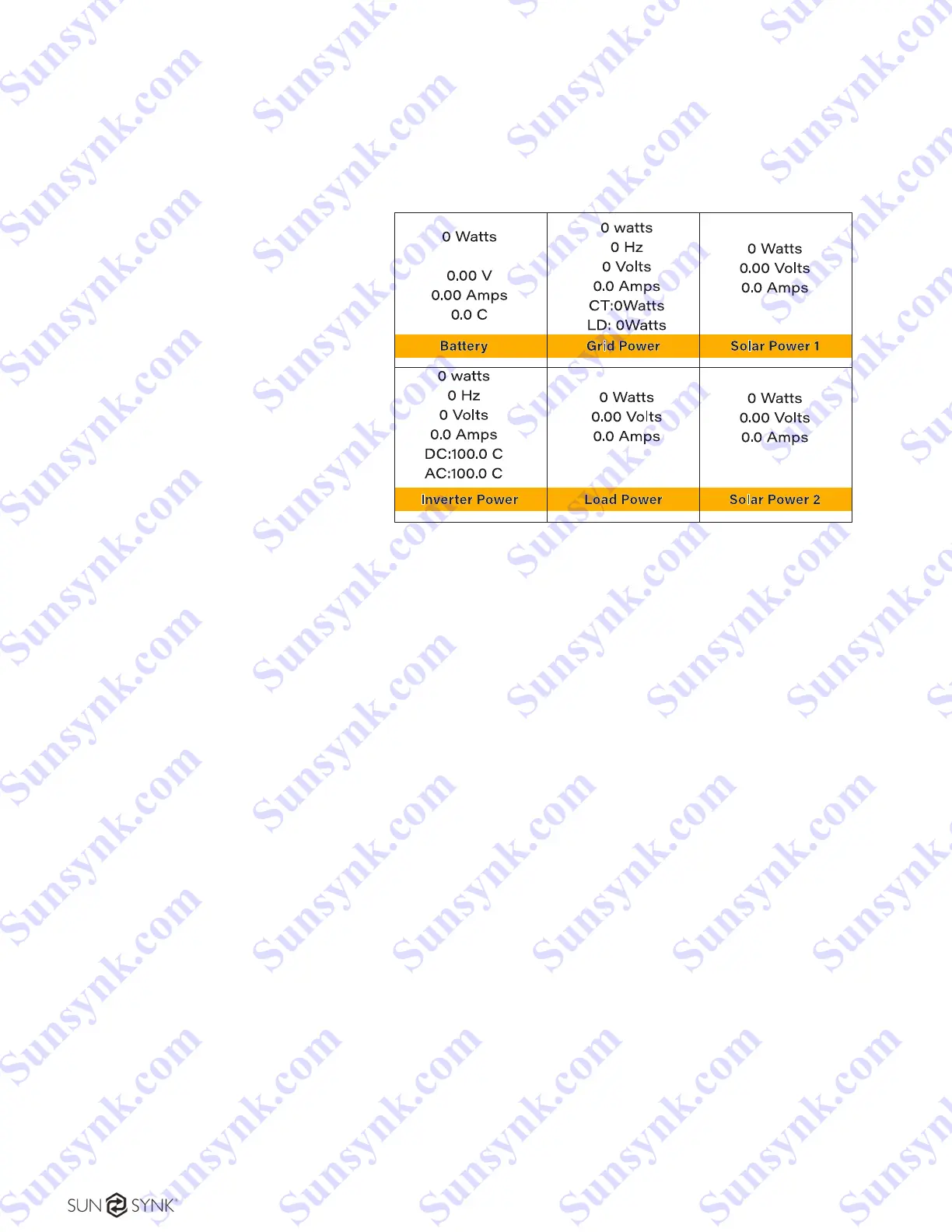

Figure 31 - Status page.
Battery SOC.
Battery voltage.
Battery current.
Battery temperature.
