18

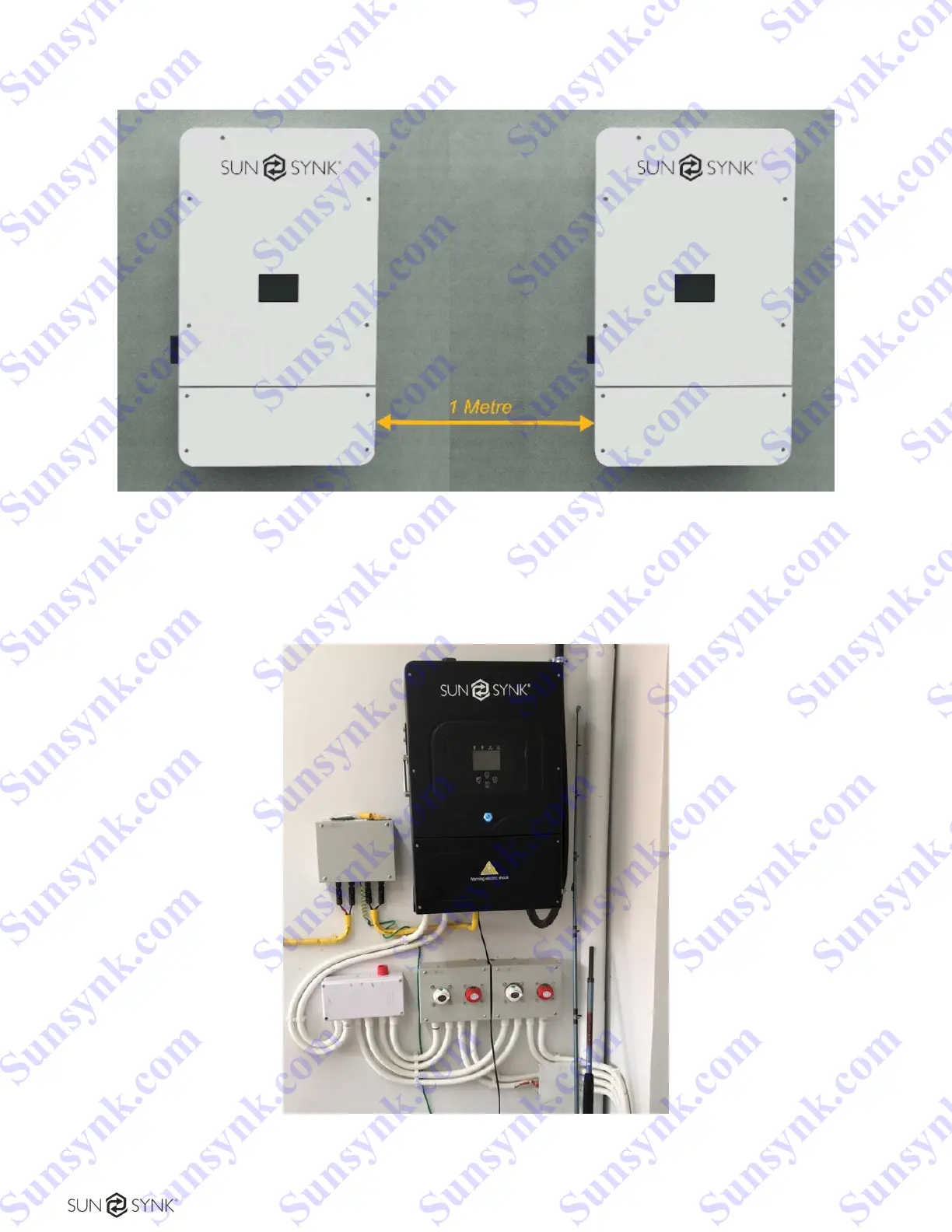

Figure 13 - Distance between inverters.
When connecting the inverter, it is not only good practice but maybe also a mandatory requirement to run
the AC and the DC cables in separate trunking.
Figure 14 - Sunsynk inverter installation - black version.
