The above reference circuit is using one inverter as a charger and two inverters are supplying the load.
This configuration gives you a more stable supply and reduces the size of the required generator. The
generator would never see any large surge current.
Note: The Home Screen will display the generator running time. It will not display the amount of power
produced by the generator because there is no method to measure it.
6.4. EARTH CONNECTION (MANDATORY)
A Ground-Cable shall be connected to Ground Plate on grid side as this prevents electric shock (if the
original protective conductor fails).

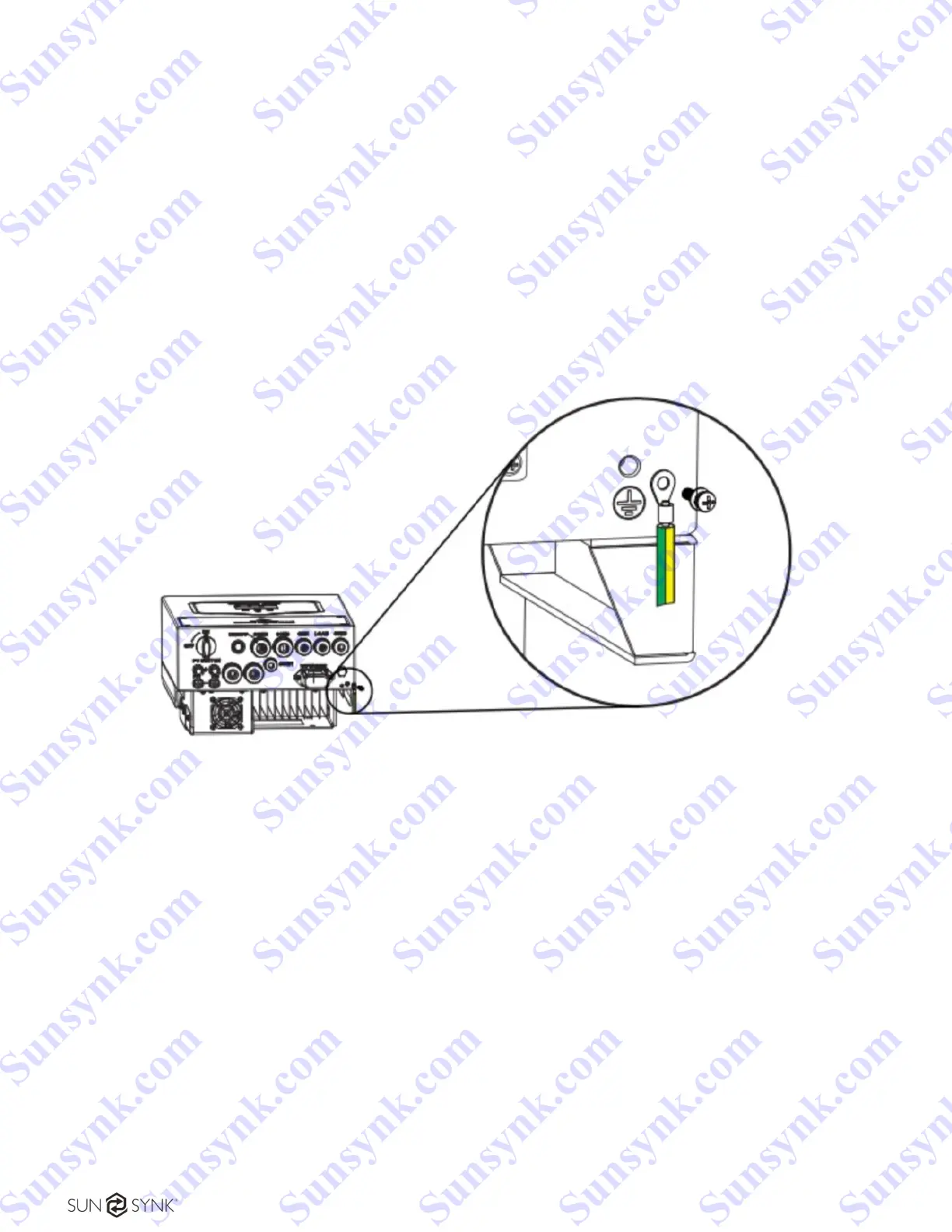

Figure 40 - Ground connection.
All neutrals can be linked together to maintain the neutral bond. When Neural Earth bond is required for
Off-Grid, then it has to be removed when on Grid-Tied operation.
The unit must be correctly grounded, and the supply line must be equipped with a suitable breaker and
Residual Current Devices (RCDs) to protect users.
If an external RCD is used, a device of type (A/AC, etc.) should be employed, with a tripping current of
30mA.
