SunSynk 8kW User Manual

Website: www.sunsynk.com E-mail: sales@globaltech-china.com
30

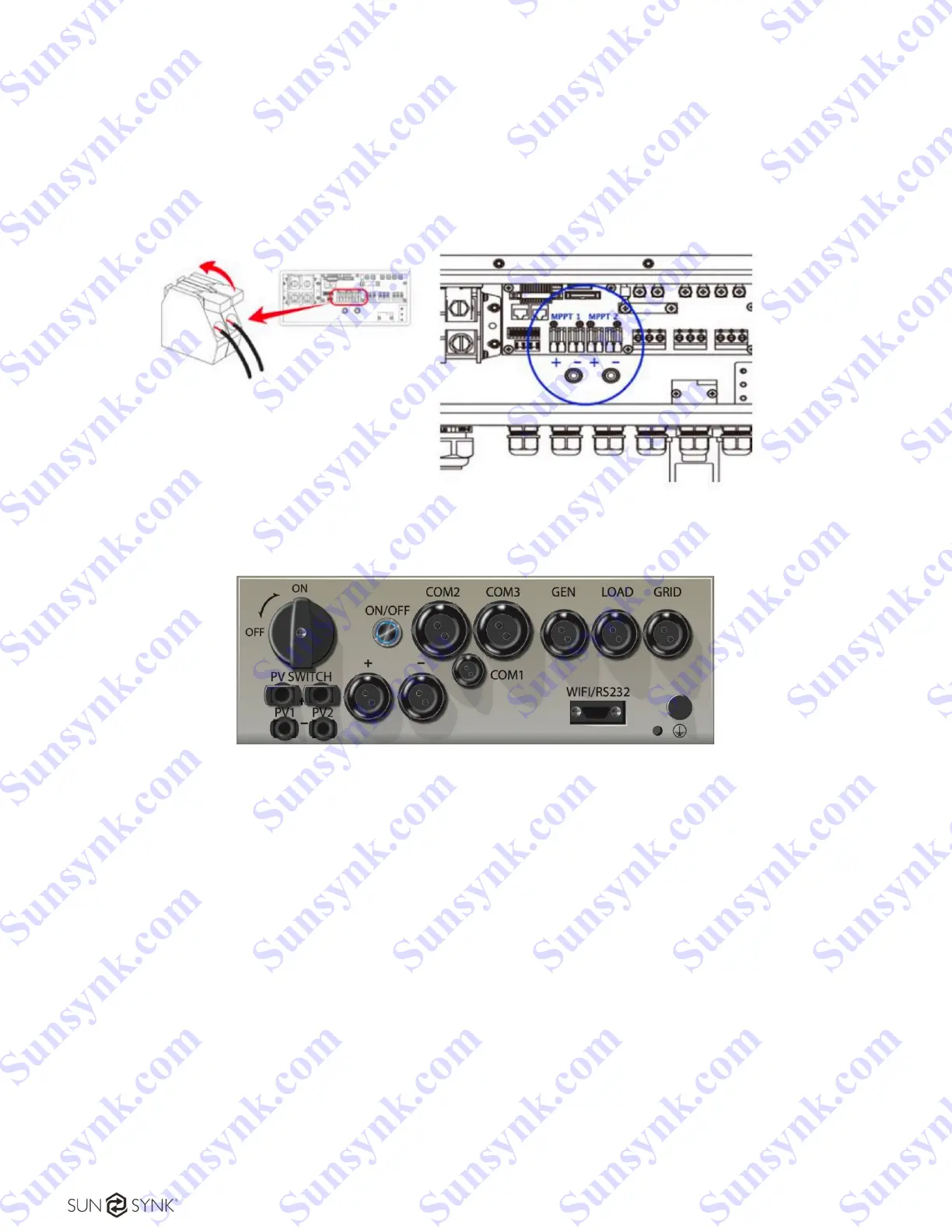

Figure 27 shows the PV connection of the 8.8kW inverter while shows the 3.6kW/5.5kW PV connections.
For this smaller version, the panels are connected via the MC4 connectors located at the bottom of the
inverter, as presented in the diagram.
Figure 27 - PV connections of the 8.8 kW inverter.
Figure 28 - 3.6kW/5.5kW bottom view.
