OPERATION & MAINTENANCE MANUAL SWE155F

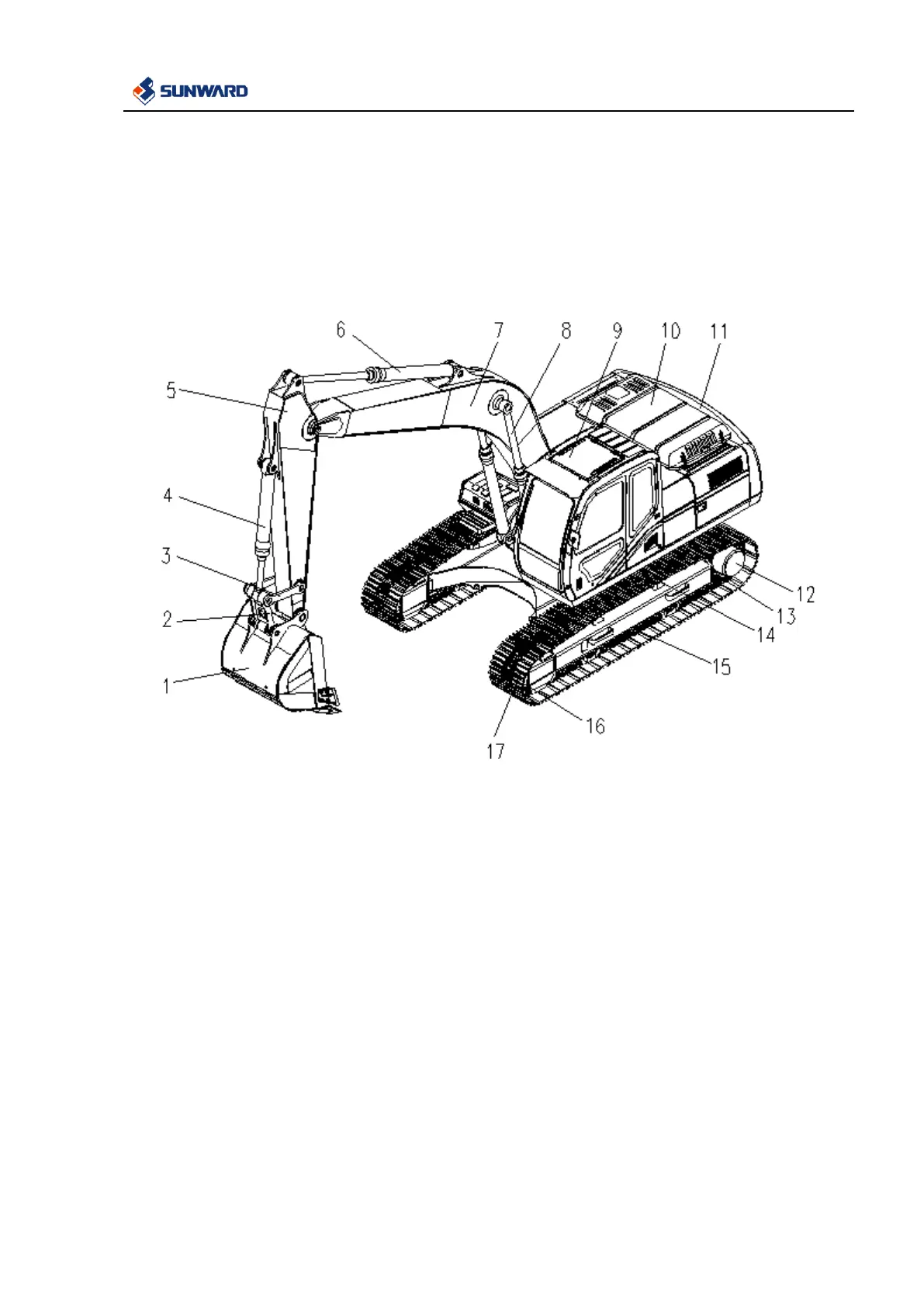

3.1 MACHINE ASSEMBLY DRAWING
To operate machine safely and properly, it’s crucial to fully understand the machine’s individual
structure and operation methods for controlling equipment, as well as the presented meaning.
1. Bucket 2.Linkage 3. Rocker arm 4. Bucket cylinder
5. Arm 6. Arm cylinder 7. Boom 8. Boom cylinder
9.Cab 10. Engine hood 11. Counterweight 12. Travel motor
13. Sprocket 14. Carrier roller 15. Track roller 16. Idler
17. Track assembly
