3.3.7 Air Conditioner Instruction
Warning
 It's dangerous to perform improper operation,
lubrication, and maintenance or service
procedure on the machine. This may cause
injury or death.
 Do not attempt any operation on the machine
before you thoroughly understand the
information about operation, lubrication,
maintenance, and service procedure.
 Safety precautions and warnings are provided
in this manual. If you fail to pay attention to
these information, you or the other persons may
suffer the injury and even death.

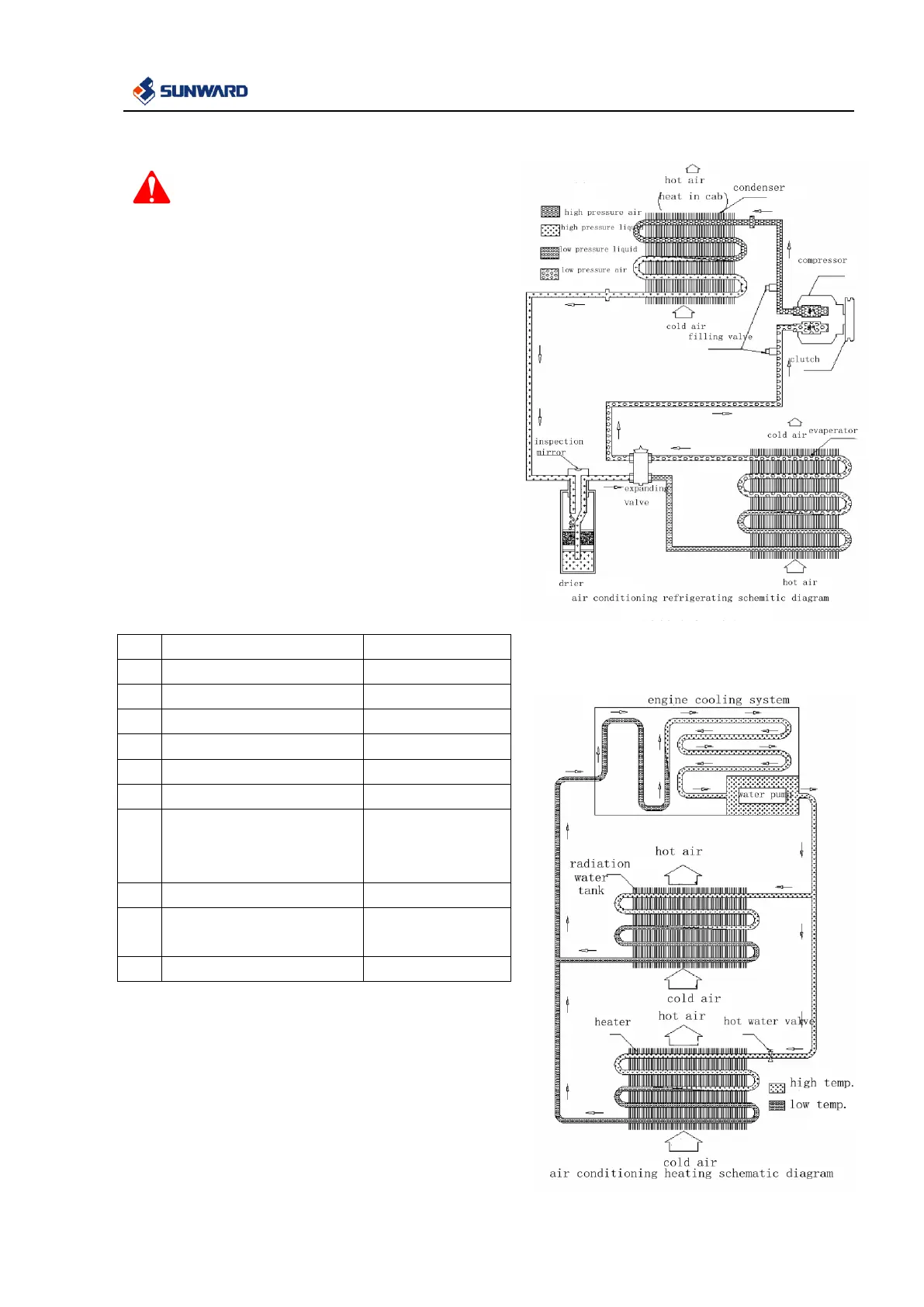

Schematic diagram
This air conditioning is heat/refrigeration A/C. refers to the
schematic diagram on the right.
NO.
Name
Specification
1
Cooling Capacity
4.0kw
2
Heating Capacity
5.0kw
3
Air Flow Capacity
400m
3
/h
4
Voltage
24V.DC
5
Total Power Consumption
≤250w
6
Motive Power Consumption
≤2.5kw
7
Refrigerant
R-134a
(environmental
protection)
8
Refrigerant Change
900∽1050g
9
Compressor
SE-5H14 B type
slot
10
Refrigerate oil
PAG(sp20),300ml
