OPERATION & MAINTENANCE MANUAL SWE155F
3.3 OTHER OPERATION INSTRUCTIONS
3.3.1 Cab Windows
Cab rotary front window
To open or close the rotary window, always stop the
machine at level ground, lower the work equipments to
ground and stop the engine before proceeding to other
operations.

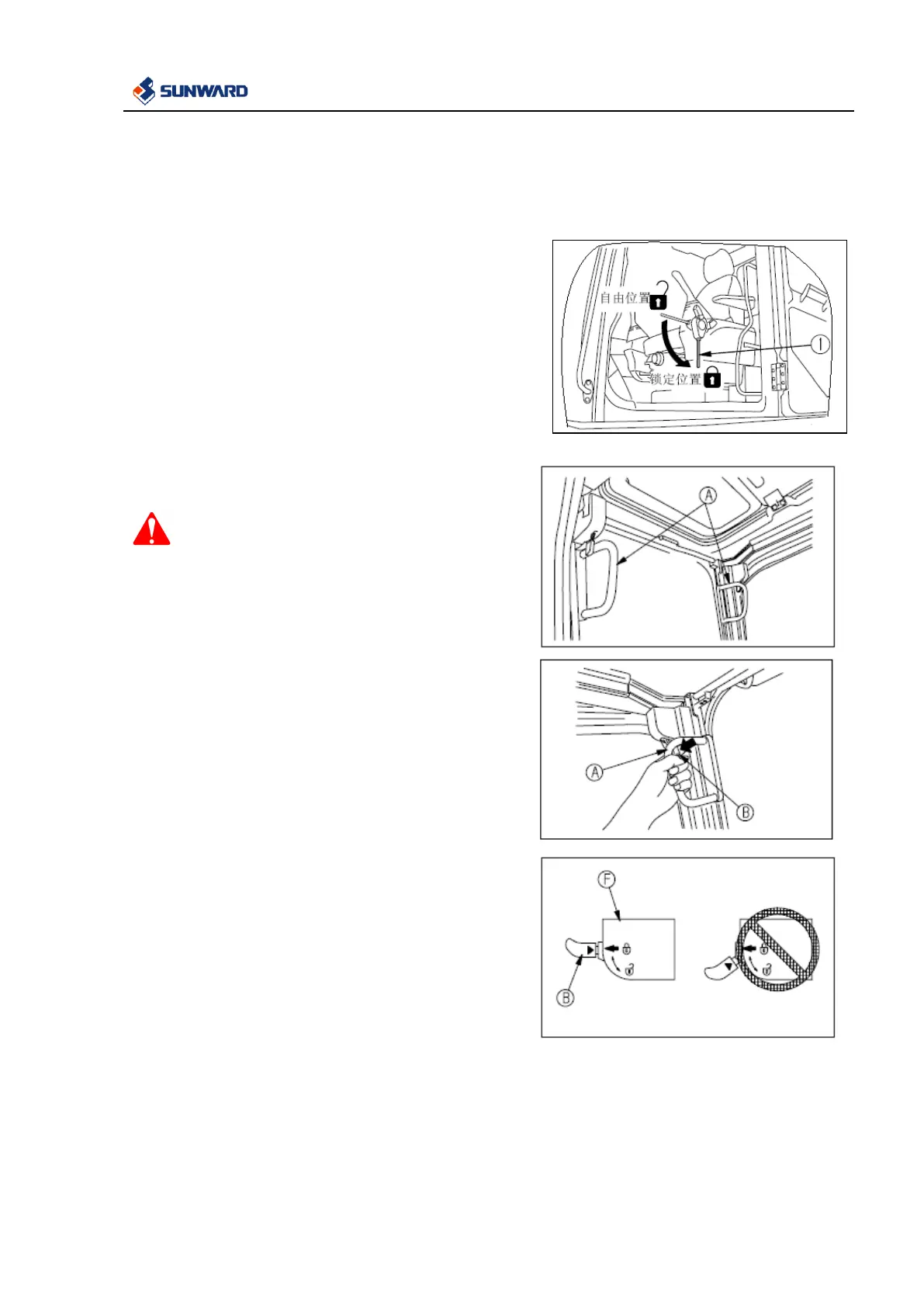

Always place the pilot safety lever A to LOCK position
(see the right fig) while opening or closing upper
window, rotary window, lower window or door.
Warning
Serious accidents may occur if fail to lock the
control lever and touch it unexpectedly.
Check if the wiper blades are in fixed position.
Use both hands to grip handle A firmly, press fasten
buckle B with thumb (see fig). Use hands to push rotary
window back-upward to the top of the cab to fix rotary
window.
To close the front window, grip the handle A by hands,
press fasten buckle B with thumb. When close the front
window, grip the handle firmly and put it down slowly,
push handle A forward when the window get to the
bottom to ensure the complete fixing of the lockset.
