SUNWARD SWE155F - Right Pilot Control Handle; Horn Switch

OPERATION & MAINTENANCE MANUAL SWE155F
74
3.2.6 Right Pilot Control Handle
（with horn switch）
 The right handle for work equipment is used to
control boom up/down movement as well as
bucket’s digging and dumping.
（a）pull the handle backward--boom lift
（b）push the handle forward -boom lower
（c）push the handle to right- bucket dump
（d）push the hanlde to left - bucket dig
A (dial): switch on/off the hydraulic shear
B (button): horn
3.2.7 Horn Switch
 Horn switch is used to control hydraulic
excavator work horn. This horn switch is
located on the upper side of the right control
handle. This switch is an inching switch. We
recommend you to use right hand thumb to
depress this switch.

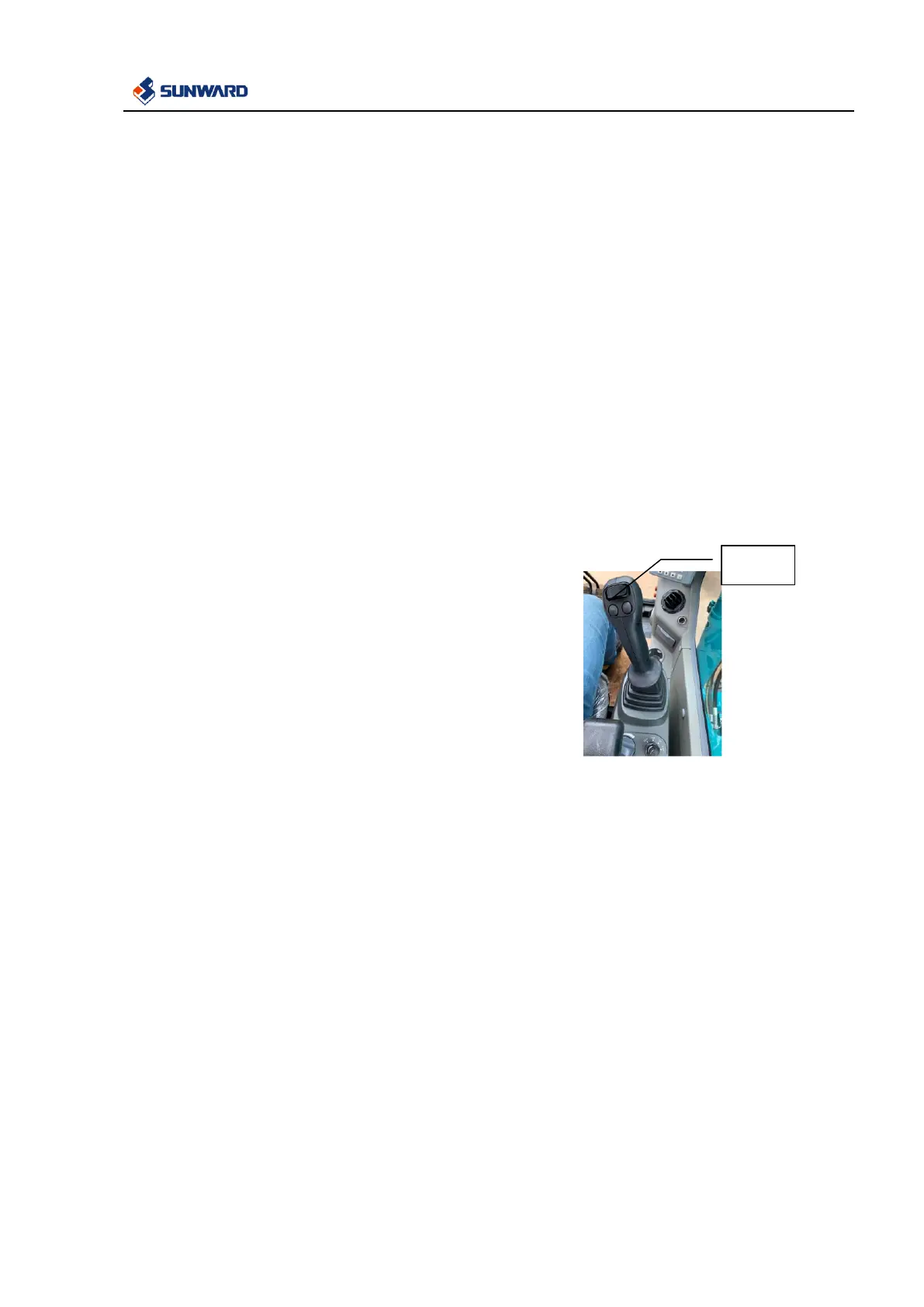

 Depress the horn switch as shown in the fig. the
horn will sound. The sound frequency and
length of time is corresponding to the status of
depressing action. When you release the thumb,
the sound stops.
Horn
