OPERATION & MAINTENANCE MANUAL SWE155F

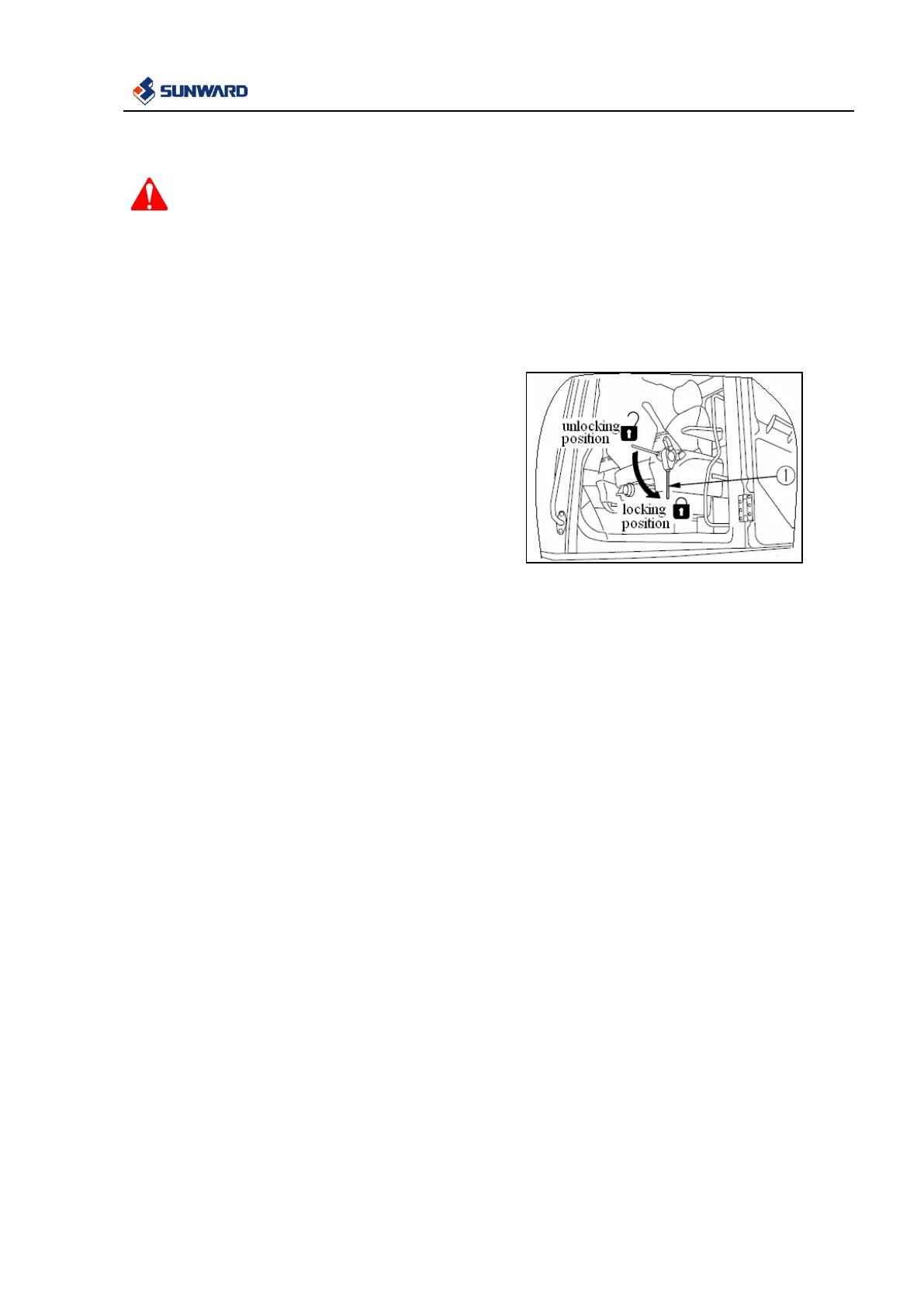

3.2.2 Pilot Safety Lever
Warning
When leaving the cab, always set the pilot
pilot safety lever (1) to LOCK position.
Failure to do so as well as to touch the lever
accidentally, serious injury may occur.
If the pilot safety lever is not set to LOCK
position, there is a possibility that it will
move and lead to serious accidents or
injury. The specification of these control
levers is shown in fig.
When operating the pilot safety lever
upward or downward, pay attention not to
touch the other control levers.
Pilot safety lever is a device being used to lock up
working equipments and control levers for swing,
travel and accessories (if equipped). Pull the lever to
lock up. .
Pilot safety lever is pilot hydraulic lock device. Even if
it’s in locked position, the control lever for working
equipment and travel control lever are movable. But
working equipments, travel motor and swing motor
stop.
