ELECTRICAL SYSTEM 6-3
IGNITION SYSTEM
DESCRIPTION

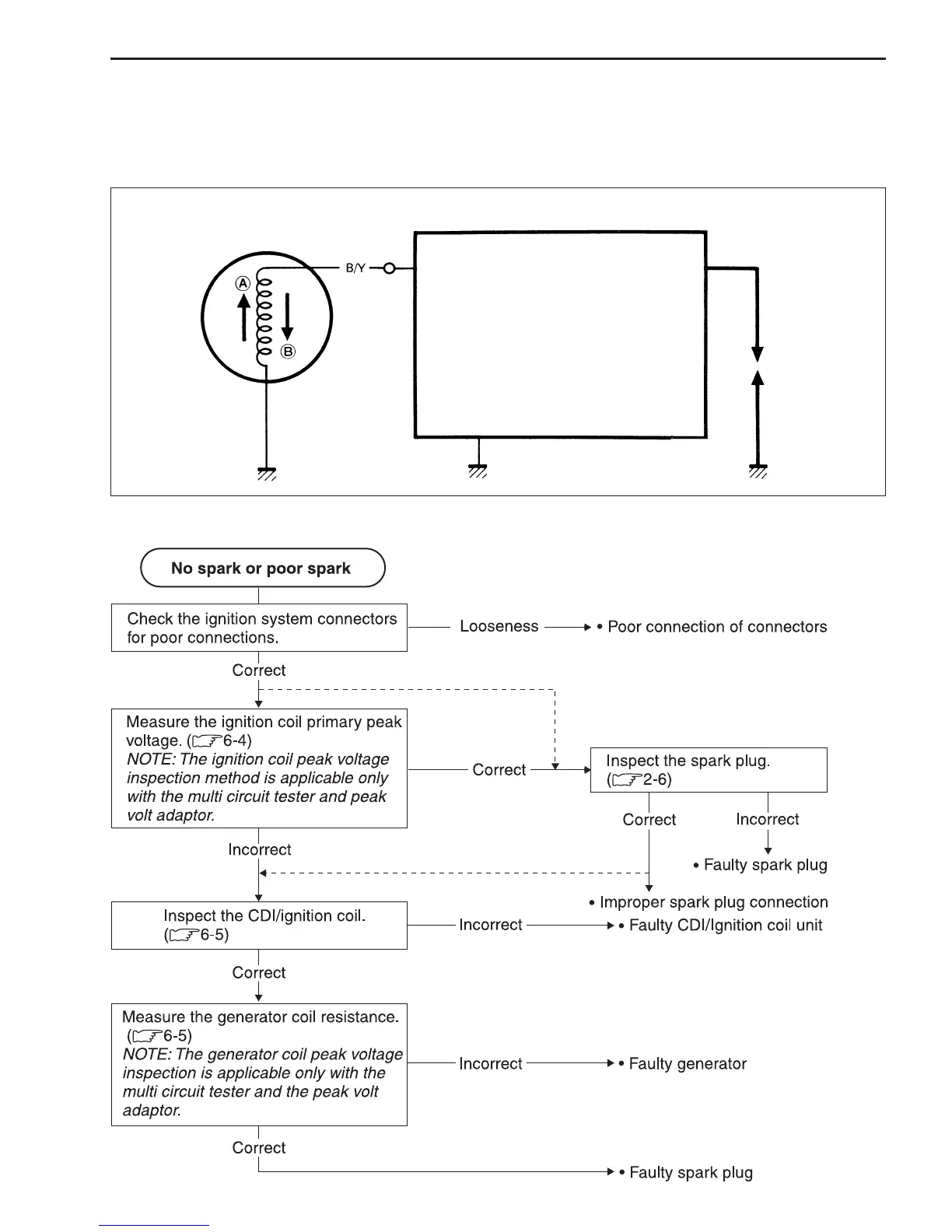

The ignition system is shown in the diagram below: namely the generator, CDI/Ignition coil unit and spark
plug.
Generator
CDI/Ignition coil unit
Spark plug
