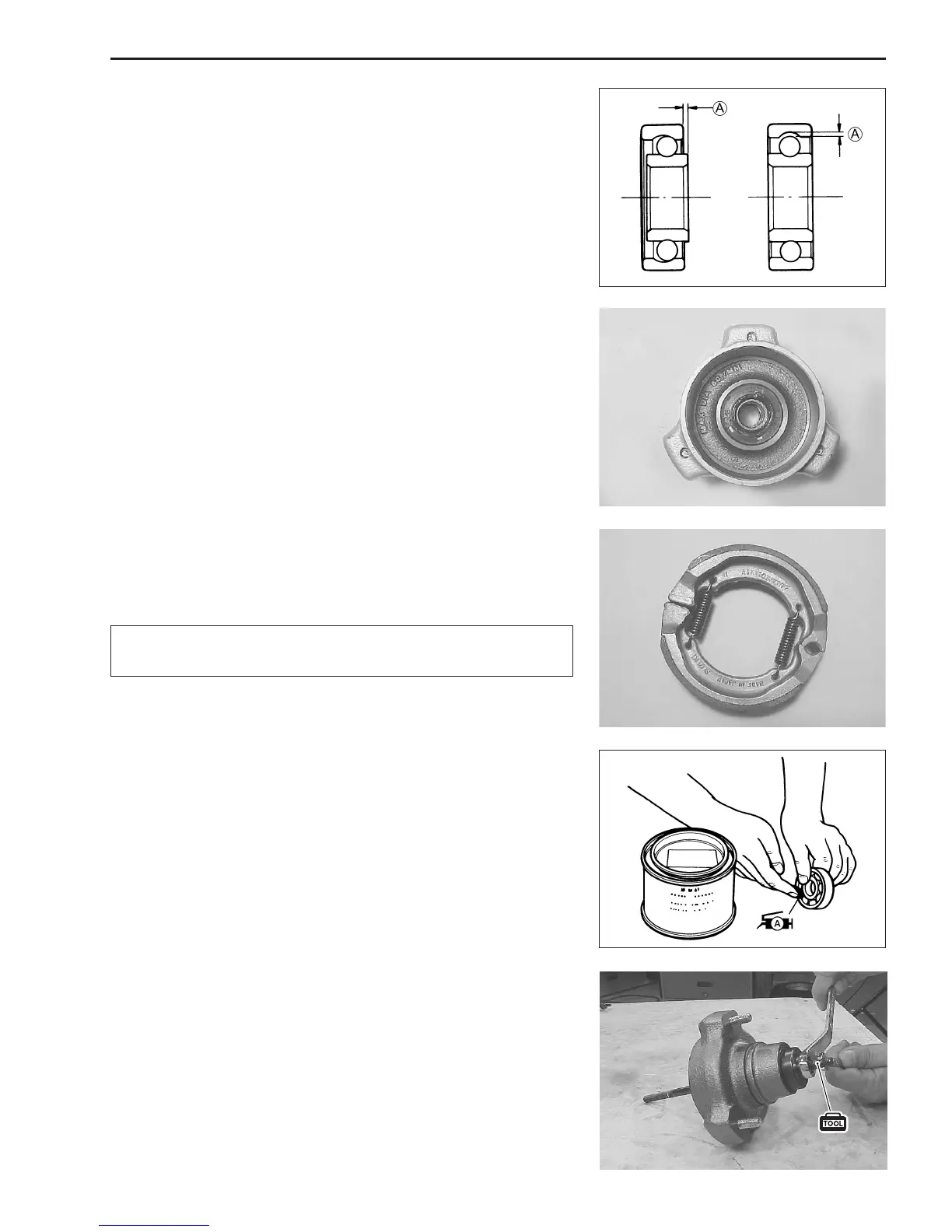

CHASSIS 5-9
INSPECTION
BEARINGS
Inspect the play A of the wheel hub bearings by hand while they
are in the wheel hub. Rotate the inner race by hand to inspect it
for abnormal noise and smooth rotation. Replace the wheel hub
bearings if there is anything unusual.
BRAKE DRUM/WHEEL HUB
Inspect the brake drum and measure the brake drum I. D. to de-
termine the extent of wear. Replace the brake drum if the mea-
surement exceeds the service limit.
The valve of this limit is indicated inside the brake drum.
% 09900-20101: Vernier calipers
$ Brake drum I. D.
Service Limit: 80.7 mm (3.18 in)
BRAKE SHOE
Inspect the brake shoes wear or damage. If it worn or damaged,
replace it with new ones.
#
Replace the brake shoes as a set, otherwise braking per-
formance will be adversely attected.
REASSEMBLY AND REMOUNTING
• Apply SUZUKI SUPER GREASE “A” to the bearing before in-
stalling.
For USA
& 99000-25030: SUZUKI SUPER GREASE “A”
For the others
& 99000-25010: SUZUKI SUPER GREASE “A”
• Install the front wheel hub bearing using the special tool.
% 09924-84521: Bearing installer set.
To Next Page
