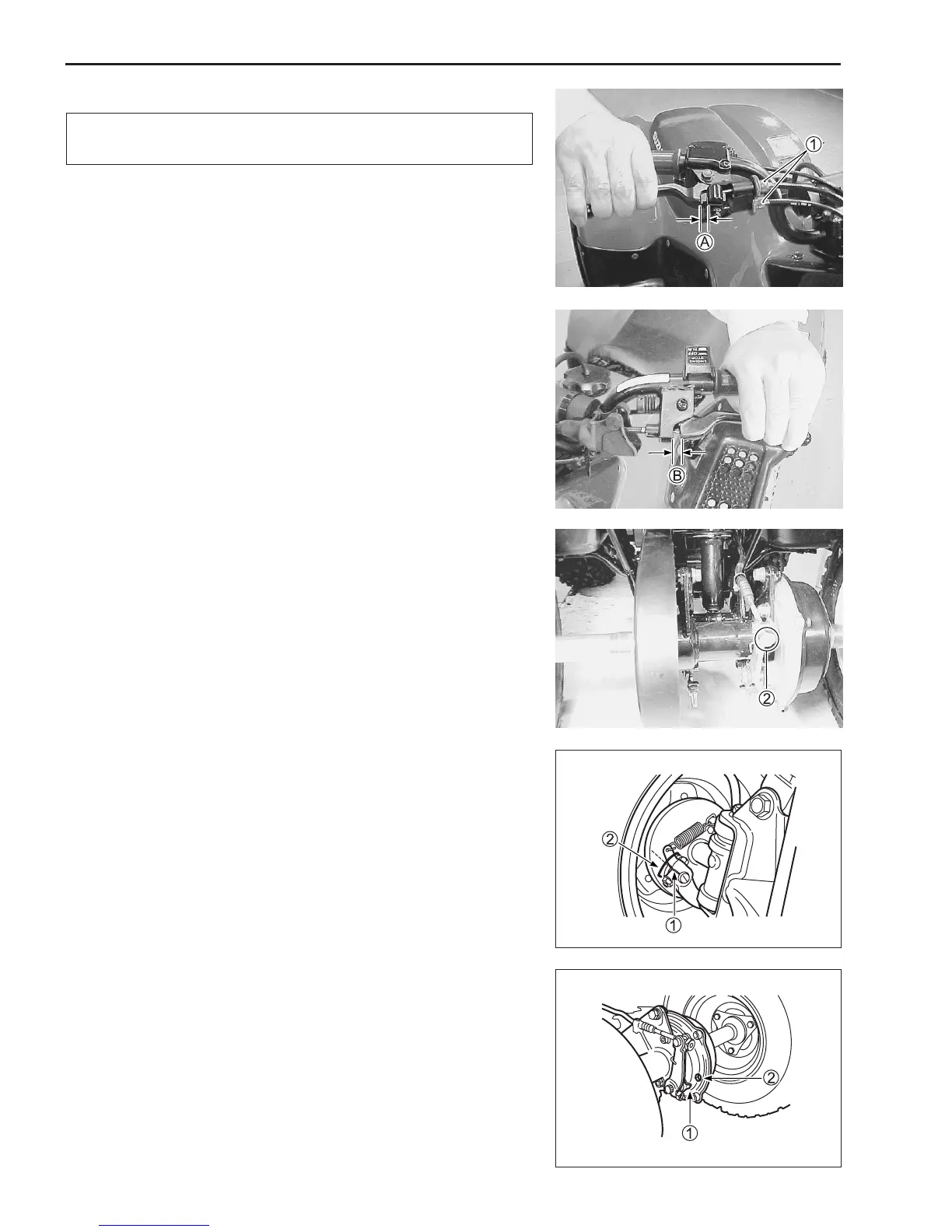

2-10 PERIODIC MAINTENANCE
BRAKES
Inspect initially at 1 month and every 3 months thereaf-
ter.
FRONT BRAKE LEVER PLAY
• Turn the adjusting nuts 1 so that the brake lever play A is within
specification.
$ Front brake lever play A: 3 – 7 mm (0.12 – 0.28 in)
REAR BRAKE LEVER PLAY
• Turn the adjusting nut 2 so that the free travel B is within speci-
fication.
$ Rear brake lever play B: 4 – 6 mm (0.16 – 0.24 in)
NOTE:
After rear brake adjustment adjust the recoil srarter.
*Recoil starter adjustment .................
"
2-11
FRONT AND REAR BRAKE SHOE WEAR
This vehicle is equipped with brake wear limit indicators for the
front and rear brake. Check brake lining wear as follows:
• Make sure the brake play is properly adjusted.
• While fully applying the brake, check to see that the extension
line of the index mark 1 is within the renge 2.
• If the index mark goes beyond the renge, the brake shoe as-
sembly should be replaced with a new set of shoes.
