Suzuki LT-A50 - Clutch

3-22 ENGINE
CLUTCH
• Install the primary driven gear 1 and a new circlip 2.
NOTE:
Fit the circlip into groove securely.
• Install the washer 4 and spacer 3.

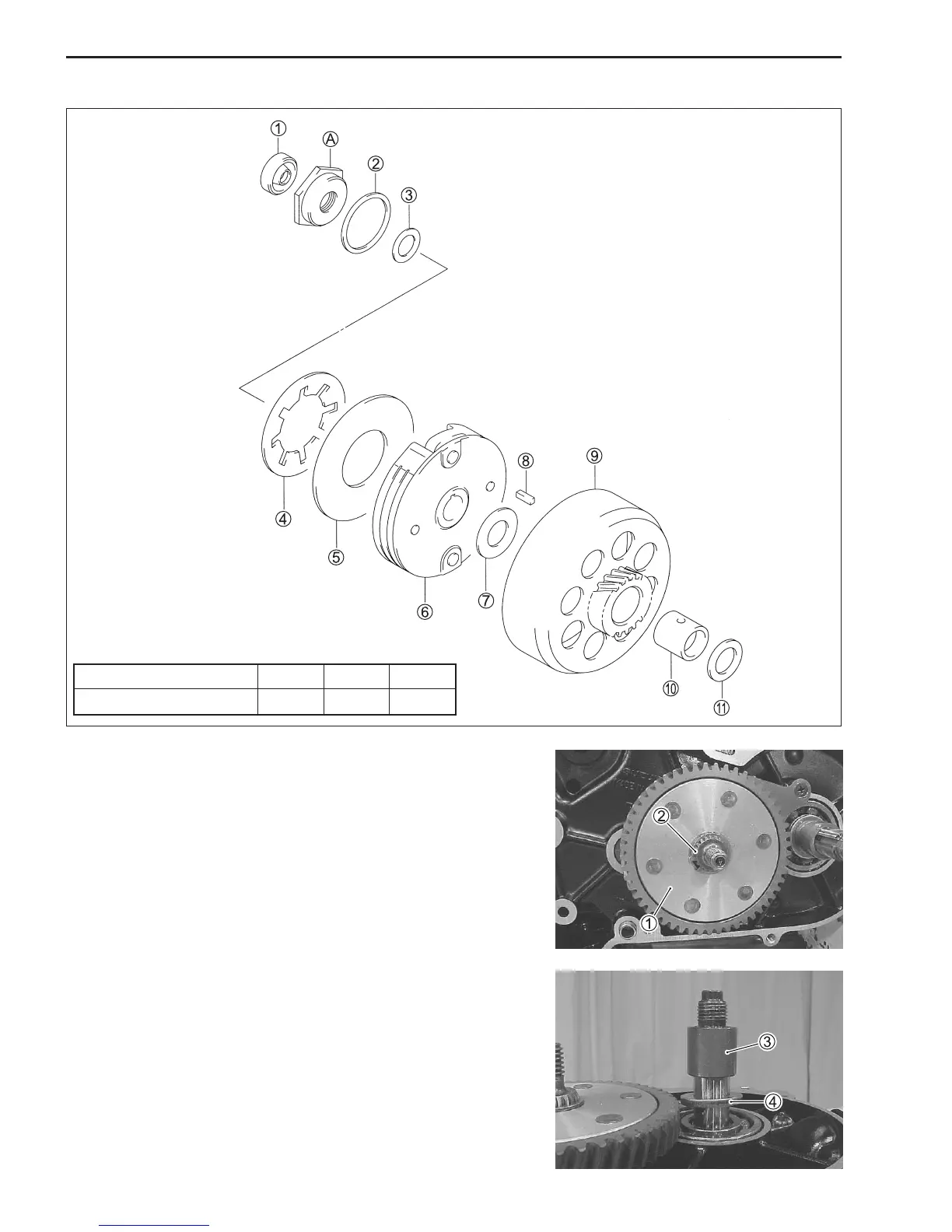

1 Oil seal
2 Thrust washer
3 Wave washer
4 Wave washer
5 Wave washer guide plate
6 Clutch shoe
7 Trust washer
8 Key
9 Clutch drum/primary drive gear
0 Spacer
A Thrust washer
A Clutch shoe nut
#
ITEM N
.
m kgf
.
m lb-ft
A Clutch shoe nut 85 8.5 61.5
