ENGINE 3-23

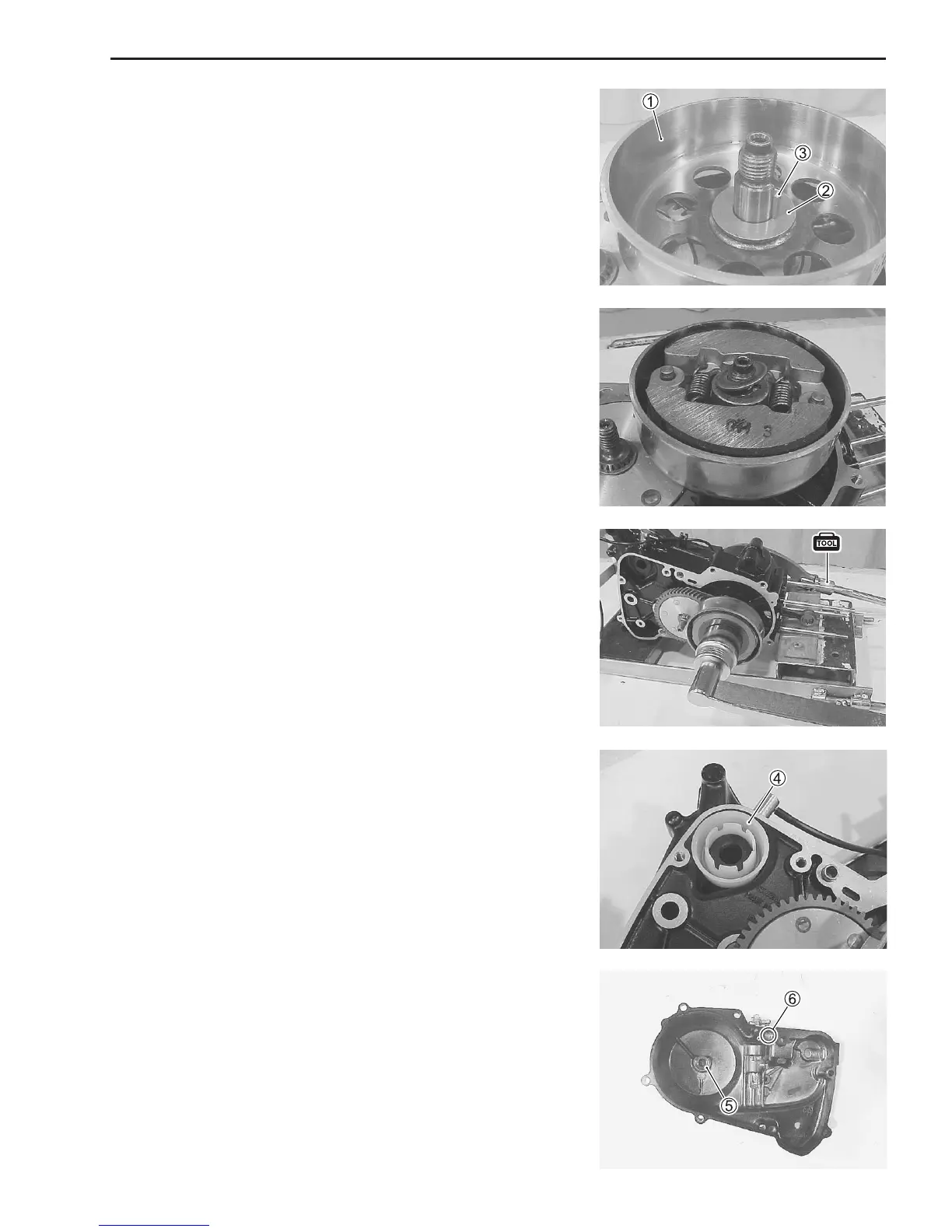

• Install the clutch drum 1, washer 2 and key 3.
• Install the key into the key groove and mount the clutch shoe
on the key.
• Install the wave washer.
• Install the guide plate, wave washer and thrust washer.
• Hold the generator rotor using special tool.
• Tighten the clutch shoe nut to the specified torque.
# Clutch shoe nut: 85 N
.
m (8.5 kgf
.
m, 61.5 lb-ft)
' 09930-40113: Rotor holder
• Install the crankcase oil separator 4.
• Before installing the clutch cover, check the oil passage and
check valve 6 for clogging and oil seal 5 for damage.
