CHASSIS 5-3
NOTE:

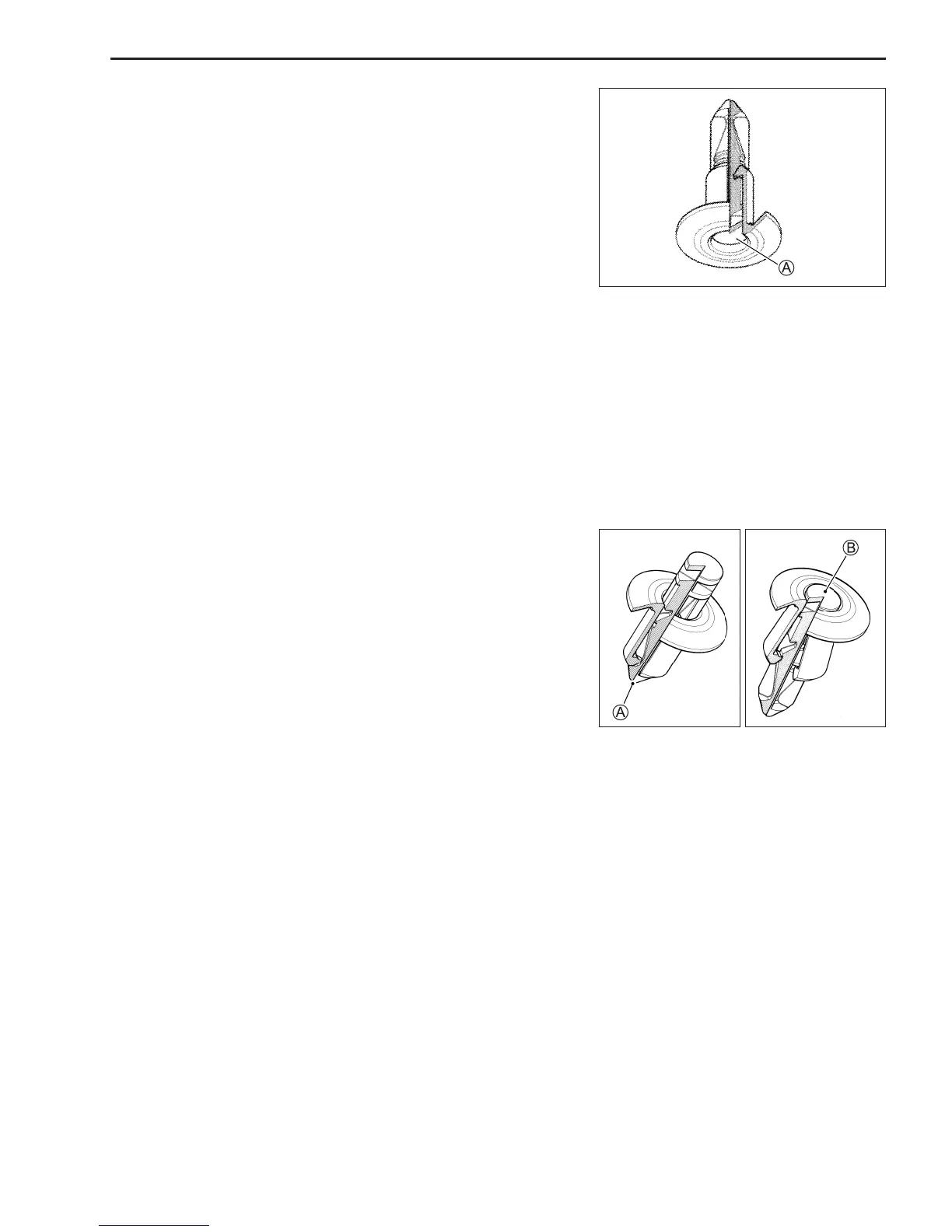

To remove the fastener, dapress the head A of fastener core and
pull out the fastener.
REMOUNTING
Remount the exterior parts in the reverse order of removal. Pay
attention following point:
FRAME COVER
• Install the frame cover using the fastner.
• Push the botton A of fastener core as shown Fig 1.
• Install the fastner into the frame cover right and left securelly
and then push the head B of fastener core as shown Fig 2.
Fig 1 Fig 2
