ENGINE 3-25
RECOIL STARTER
CYLINDER HEAD
• Install the new cylinder head gasket 1.
• Install the cylinder head and tighten the cylinder head nuts di-
agonally to the specified torque.
# Cylinder head nut: 9 N
.
m (0.9 kgf
.
m, 6.5 lb-ft)
CYLINDER
• Install the new cylinder base gasket 1.
• Apply SUZUKI CCI SUPER oil onto the piston and cylinder
wall surfaces and then carefully install the cylinder 2 over the
piston.

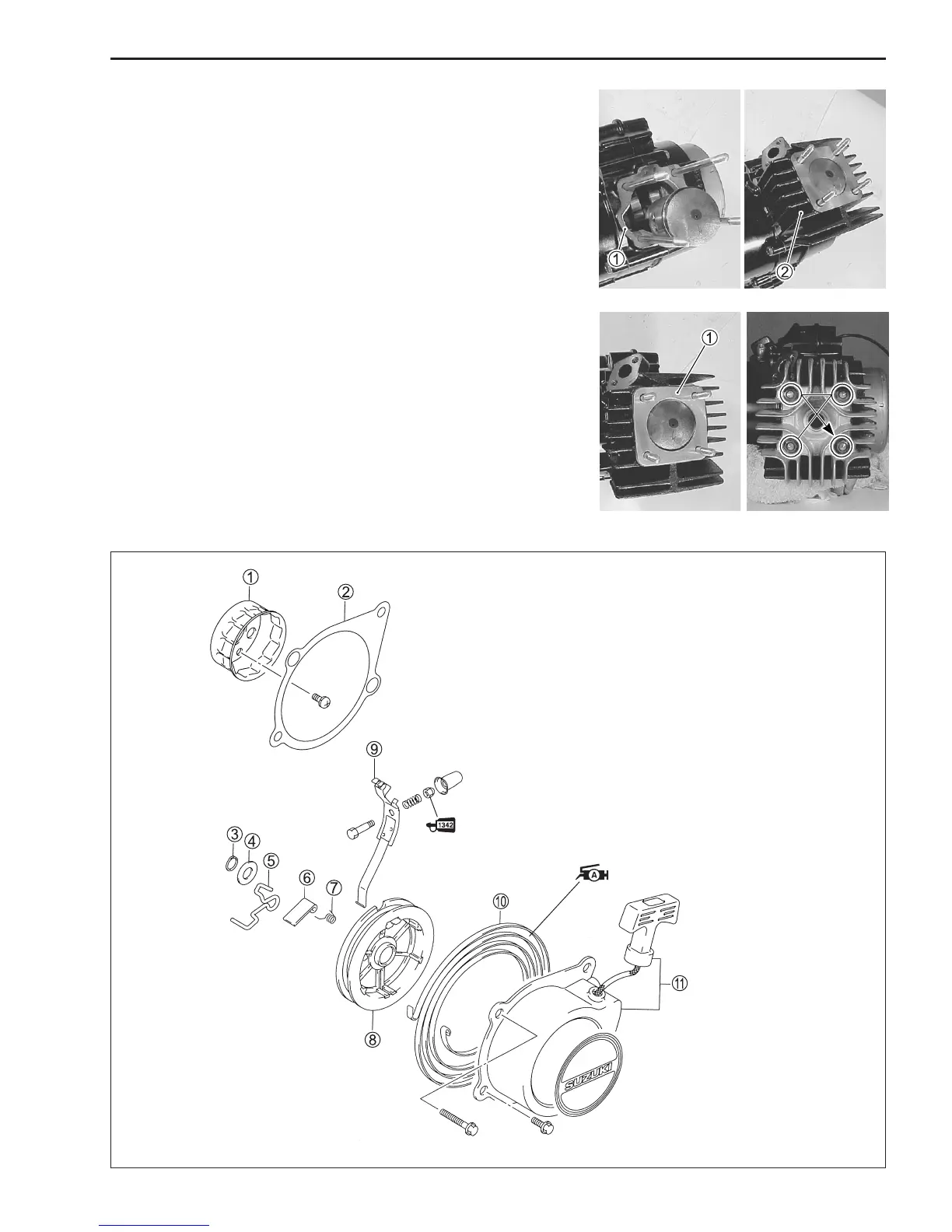

1 Recoil starter cup
2 Gasket
3 Circlip
4 Washer
5 Lever
6 Rachet
7 Return spring
8 Reel
9 Lever assembly
0 Spiral spring
A Rope assembly
To Next Page
