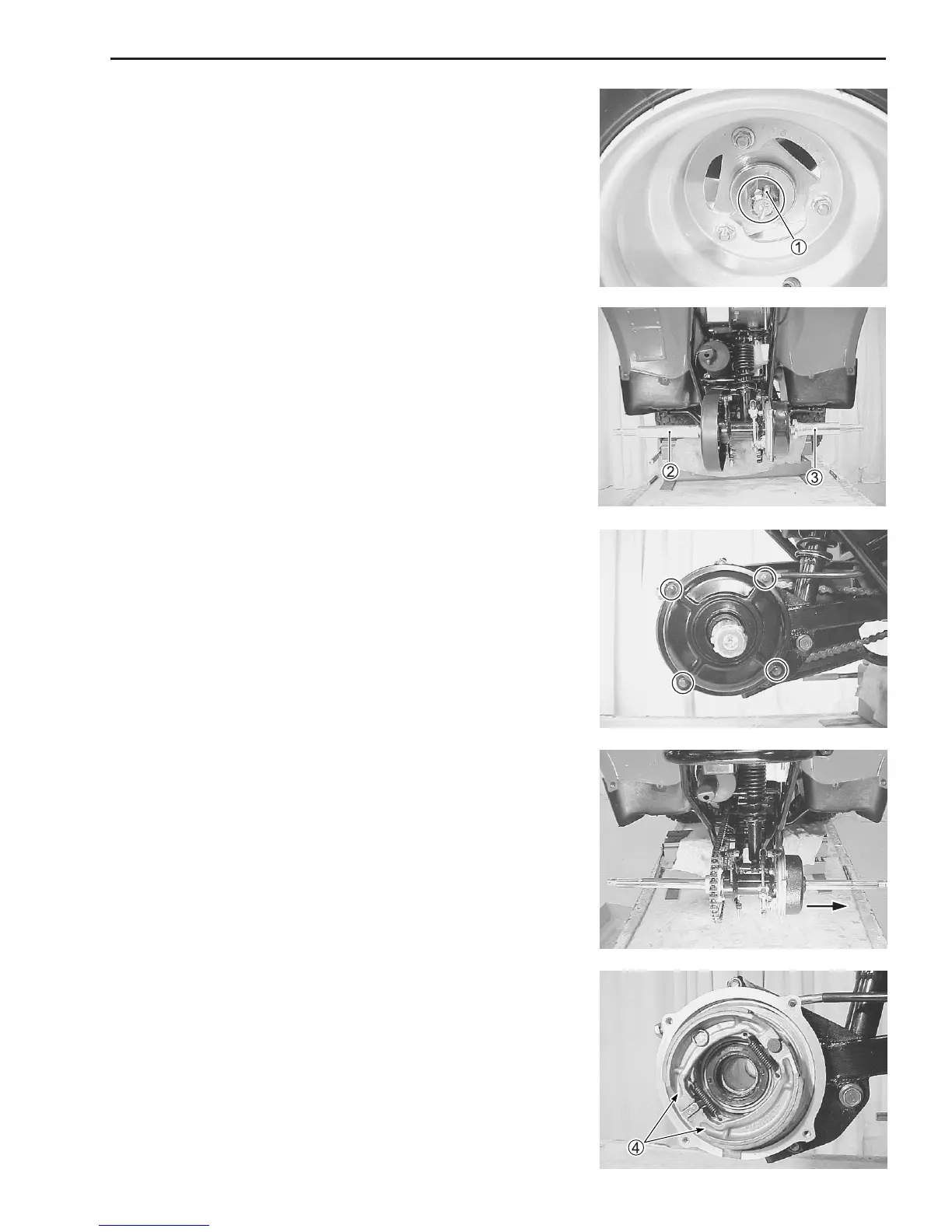

• Remove the cotter pin 1.
• Remove the rear axle nut by applying the rear brake.
• Remove the rear wheels.
• Remove the spacer, 2, 3.
• Remove the rear brake drum cover.
• Remove the rear axle, rear brake drum and rear sprocket.
• Remove the rear brake shoes 4.
