5-26 CHASSIS

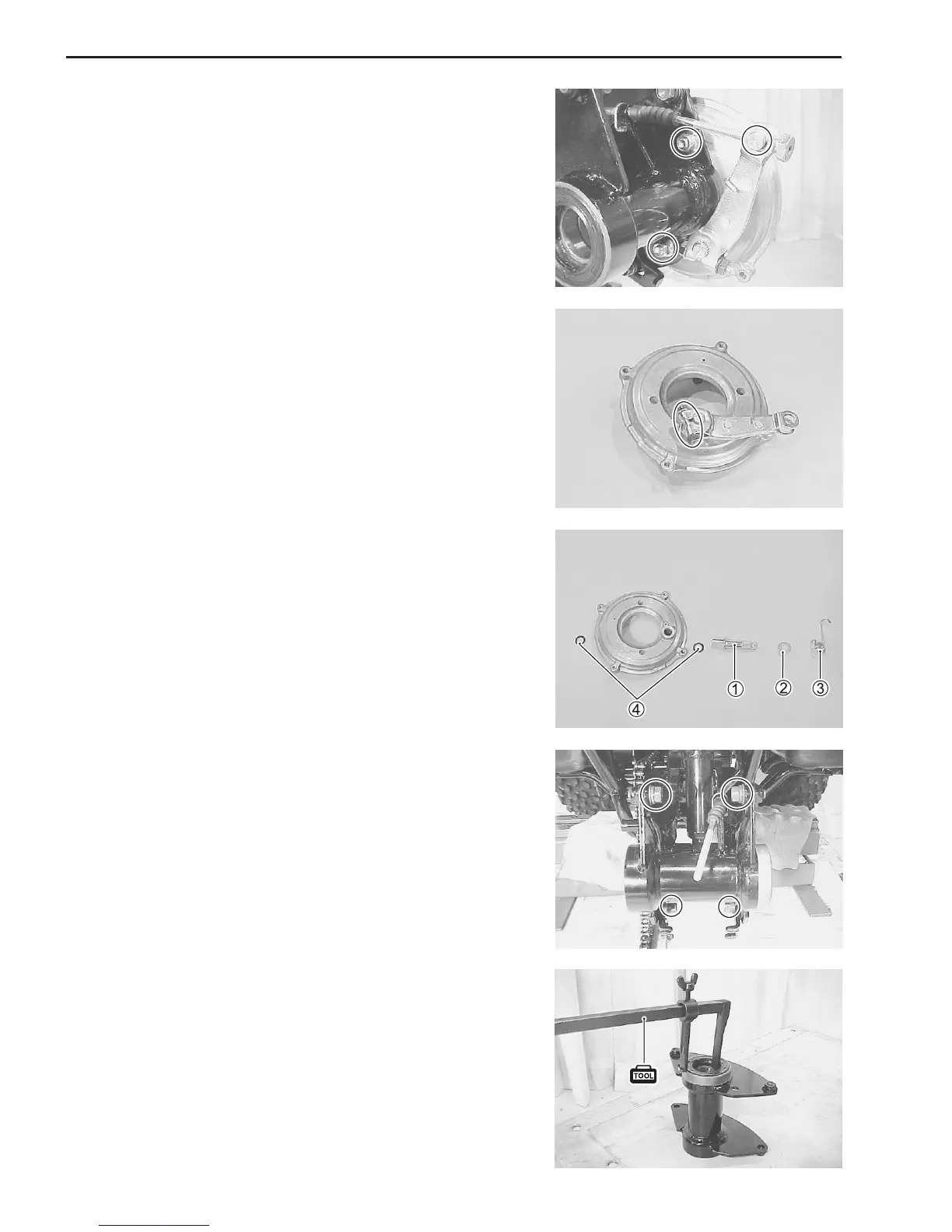

• Disconnect the rear brake cables.
• Remove the rear brake panel.
• Remove the rear brake cam lever bolt and cam lever.
• Remove the rear brake cam 1, brake lining indicator plate 2,
spring 3, and O-rings 4.
• Remove the rear axle housing.
• Remove the dust seals using the special tool.
% 09913-50121: Oil seal remover
