CHASSIS 5-7

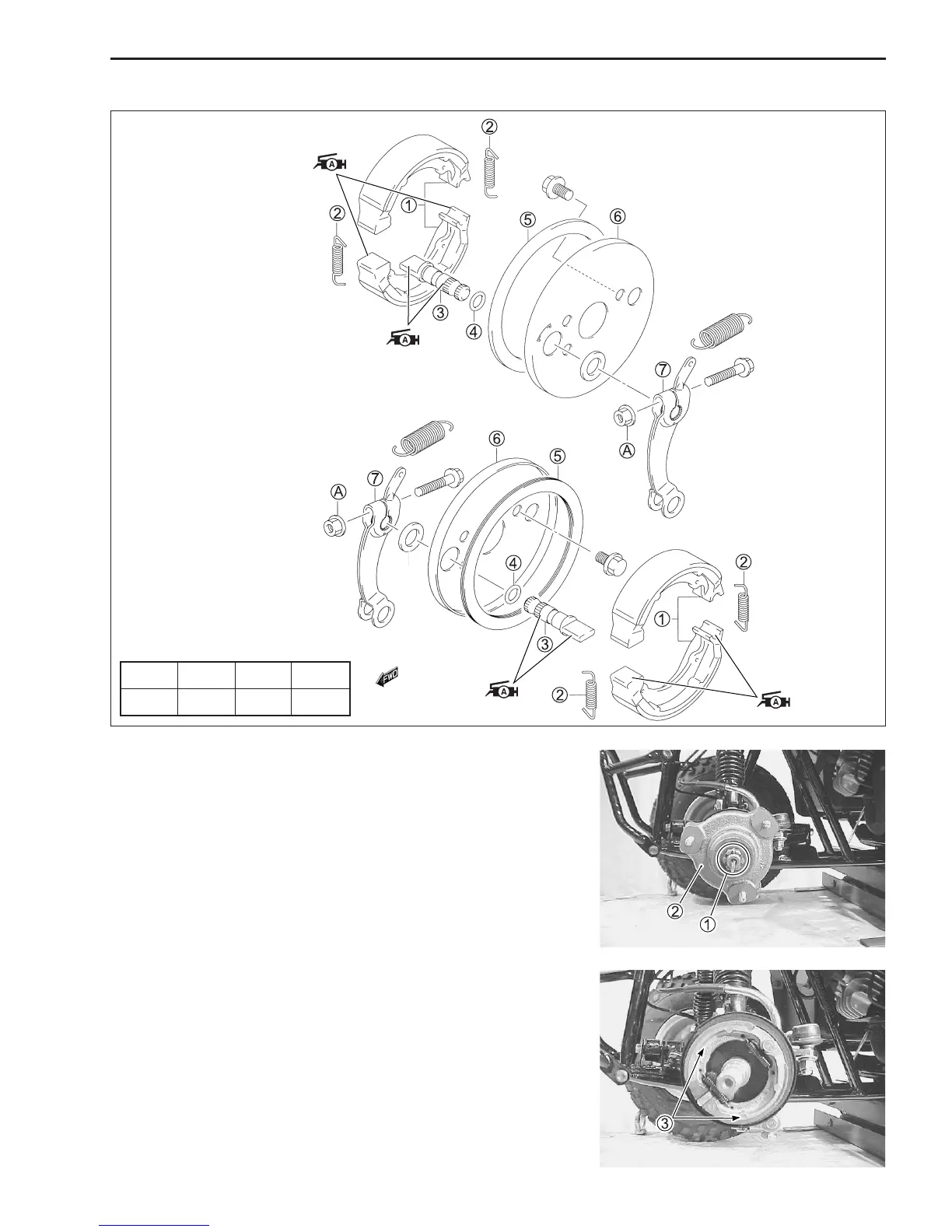

FRONT BRAKE
REMOVAL AND DISASSEMBLY
• Remove the front wheel. ("5-4)
• Remove the wheel center cap.
• Remove the cotter pin and axle nut 1.
• Remove the front wheel hub 2.
• Remove the front brake shoe assembly 3.
1 Front brake shoe
2 Spring
3 Front brake cam shaft
4 O-ring
5 Dust seal
6 Front brake panel
7 Cam lever
A Front brake cam lever nut
!
ITEM N
.
m kgf
.
m lb-ft
A 3 0.3 2.0
