Suzuki LT-A50 - Steering and Front Suspension Service

5-12 CHASSIS
STEERING AND FRONT SUSPENSION

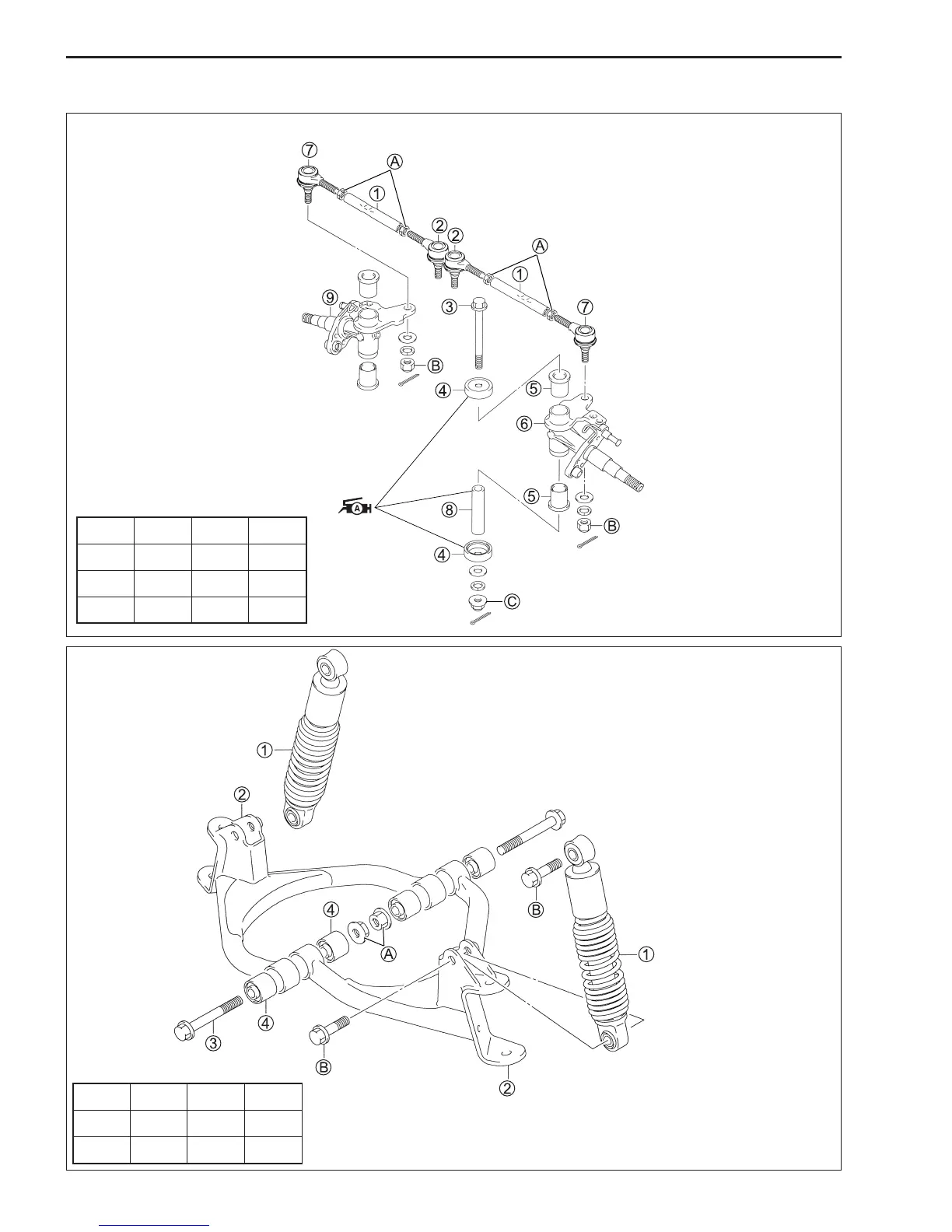

1 Shock absorber
2 Suspension arm
3 Suspension arm bolt
4 Bushing
A Suspension arm nut
B Shock absorber mounting bolt
(lower and upper)
1 Tie-rod
2 Inner tie-rod end
3 knuckle arm bolt
4 Dust seal
5 Bushing
6 Knuckle arm (L)
7 Outer tie-rod end
8 Spacer
9 Knuckle arm (R)
A Tie-rod lock nut
B Tie-rod end nut
C Kunckle arm nut
!
ITEM N
.
m kgf
.
m lb-ft
A 29 2.9 21
B 29 2.9 21
C 50 5.0 36
!
ITEM N
.
m kgf
.
m lb-ft
A 50 5.0 36
B 29 2.9 21
