Suzuki LT-A50 - Piston Ring and Piston

3-24 ENGINE

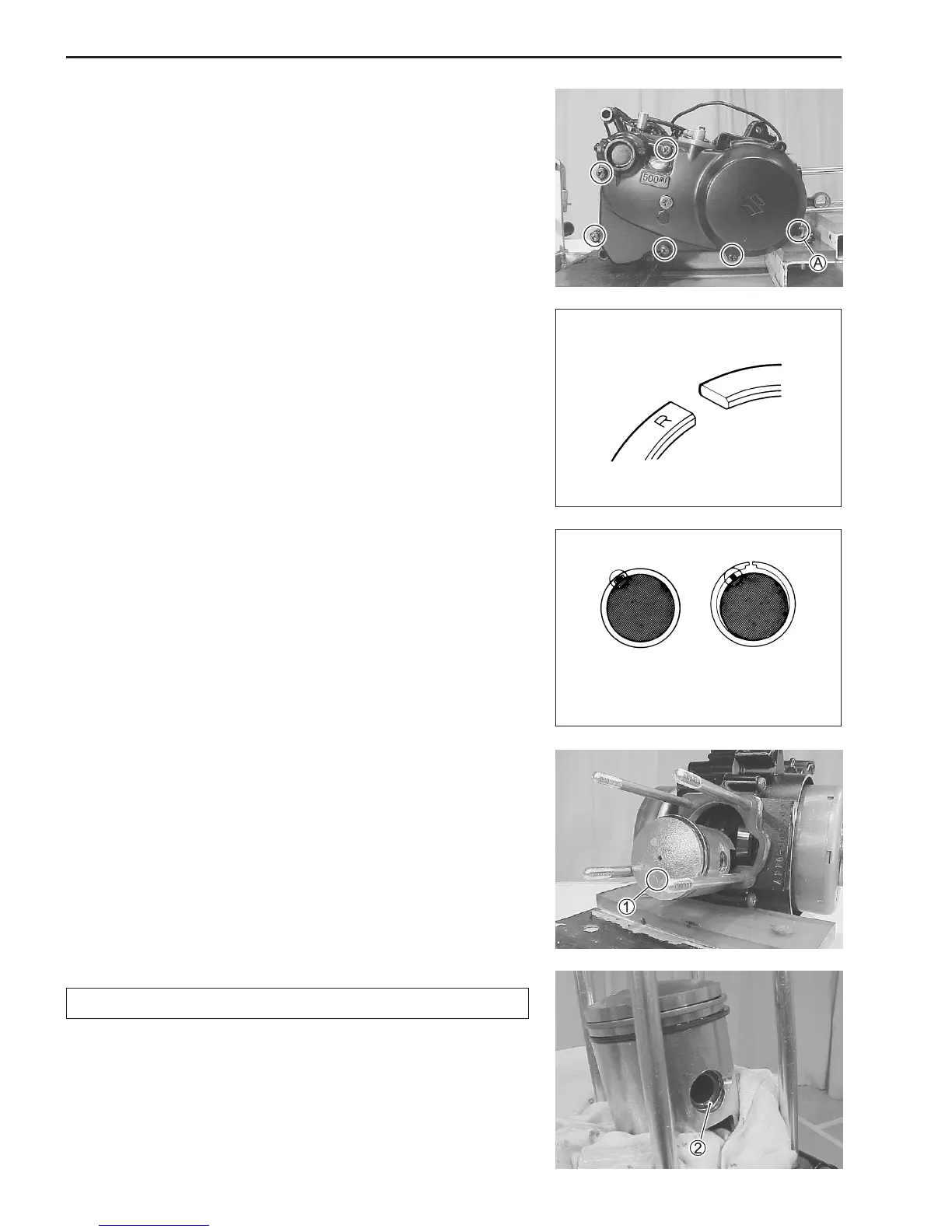

• Install the new gasket and clutch cover.
NOTE:
* Screw A holds a clamp for carburetor overflow pipe.
PISTON RING AND PISTON
• Install the piston rings onto the piston.
1st ring : Keystone ring
2nd ring : Keystone ring and expander ring
NOTE:
The piston rings should be installed with the mark facing up.
• Position the piston ring gap, as shown. Before inserting the pis-
ton into the cylinder, check that the gaps are properly posi-
tioned.
• Before installing the piston pin, apply SUZUKI CCI SUPER oil
onto its surface.
• Apply SUZUKI CCI SUPER oil to the big and small ends of the
conrod.
• Place a clean rag over the cylinder base to prevent the piston
pin circlip from dropping into crankcase.
• Install the piston with the arrow mark 1 facing towards the
exhaust side.
• Install the piston pin circlip 2 with long-nose pliers.
$
Use a new piston pin circlip 2 to prevent circlip failure.
CORRECT
INCORRECT
