Suzuki LT-A50 - Fuel Tank and Fuel Valve Removal

4-2 FUEL AND LUBRICATION SYSTEM
FUEL TANK AND FUEL VALVE
REMOVAL
!
Gasoline is very explosive.
Extrem care must be taken.
• Turn the fuel valve “OFF” position.
• Remove the frame cover. ("5-2)
• Replace the fuel tank cap.

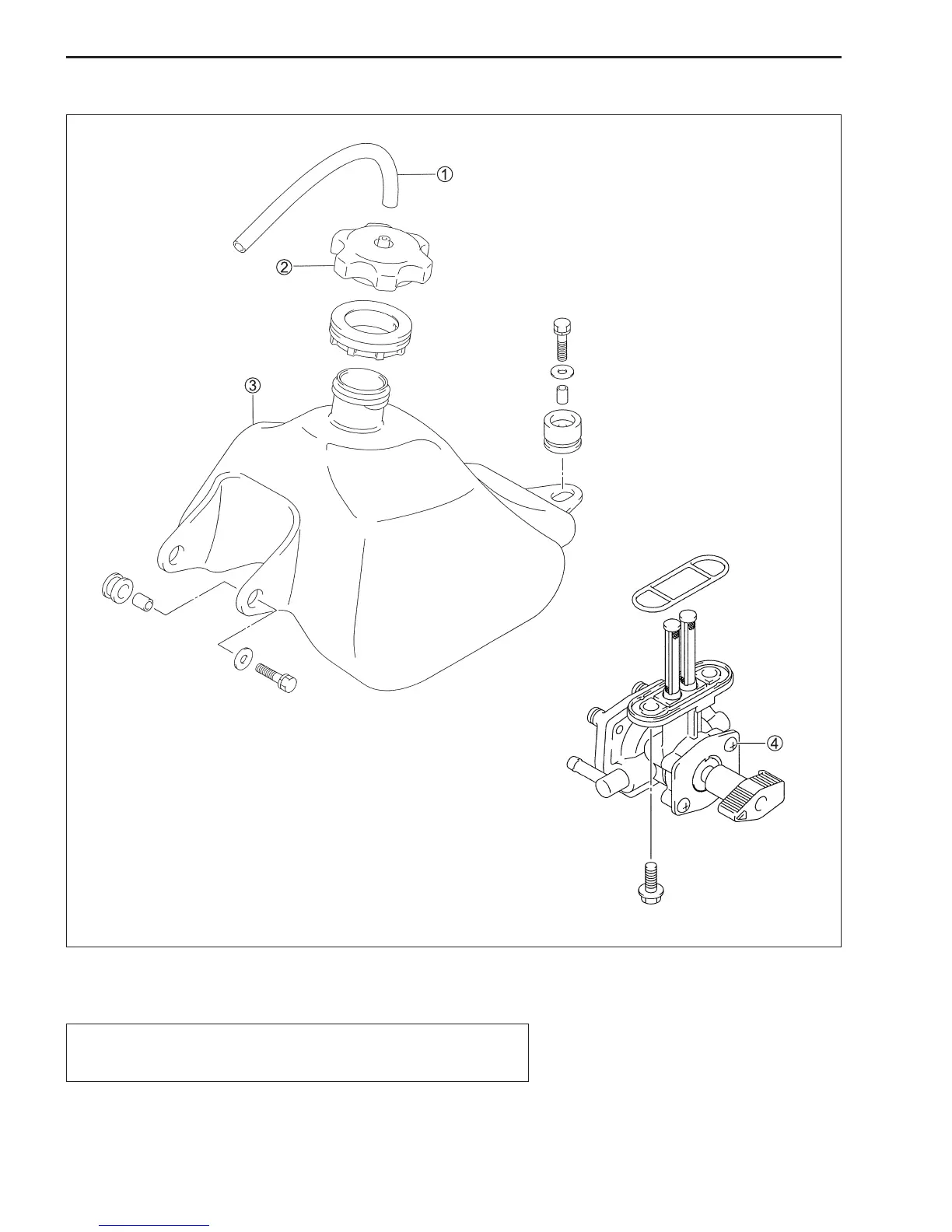

1 Breather hose
2 Fuel tank cap
3 Fuel tank
4 Fuel valve
