5-4 CHASSIS
FRONT AND REAR WHEELS
REMOVAL
• Place the vehicle on level ground.
• Remove the wheel set nuts.
• Support the vehicle with a jack or wooden block and remove
the front and rear wheels.
REMOUNTING
• Remount the wheels in the reverse order of removal. Pay atten-
tion to the following point.
• Tighten the wheel set nuts to the specified torque.
! Front and rear wheel nut: 28 N
.
m (2.8 kgf
.
m, 20.5 lb-ft)

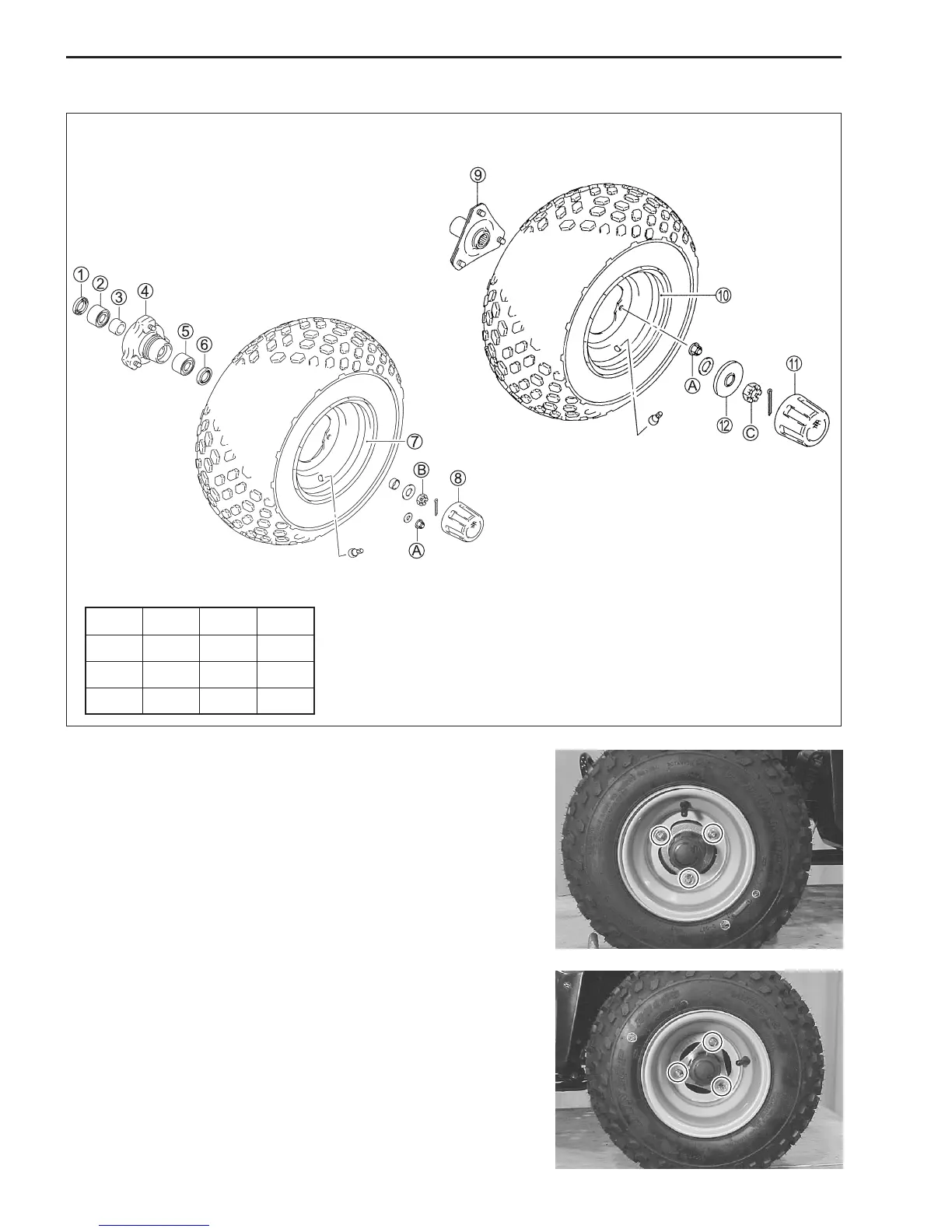

Front wheel
Rear wheel
FRONT
REAR
1 Oil seal
2 Bearing
3 Spacer
4 Front wheel hub
5 Bearing
6 Oil seal
7 Front wheel
8 Front wheel center cap
9 Rear wheel hub
0 Rear wheel
A Rear wheel center cap
B Center cap holder
A Wheel nut (front and rear)
B Front hub nut
C Rear hub nut
!
ITEM N
.
m kgf
.
m lb-ft
A 28 2.8 20.5
B 65 6.5 47.5
C 75 7.5 55.0
