Suzuki LT-A50 - Rear Brake and Axle Housing Service

5-24 CHASSIS

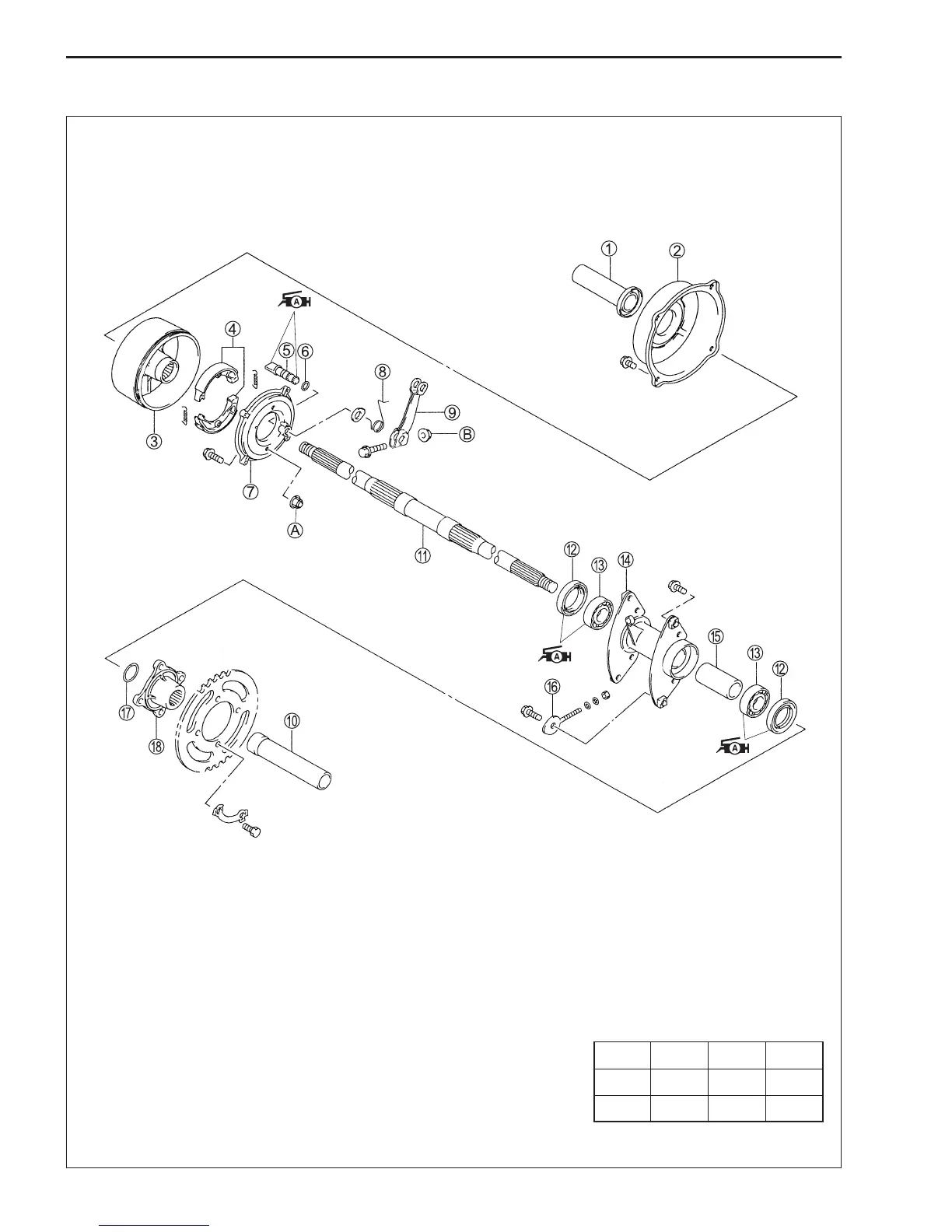

REAR BRAKE AND REAR AXLE HOUSING
1 Spacer (R)
2 Rear brake cover
3 Rear brake drum
4 Rear brake shoe
5 Rear brake cam
6 O-ring
7 Rear brake anchor panel
8 Brake cam lever spring
9 Rear brake cam lever
0 Spacer (L)
A Rear axle shaft
B Oil seal
C Bearing
D Rear axle housing
E Spacer (L)
F Chain adjuster
G Stopper ring
H Mounting flange
A Rear brake panel nut
B Rear brake cam lever nut
!
ITEM N
.
m kgf
.
m lb-ft
A 28 2.8 20.5
B 7.7 0.77 5.3
