FUEL AND LUBRICATION SYSTEM 4-7

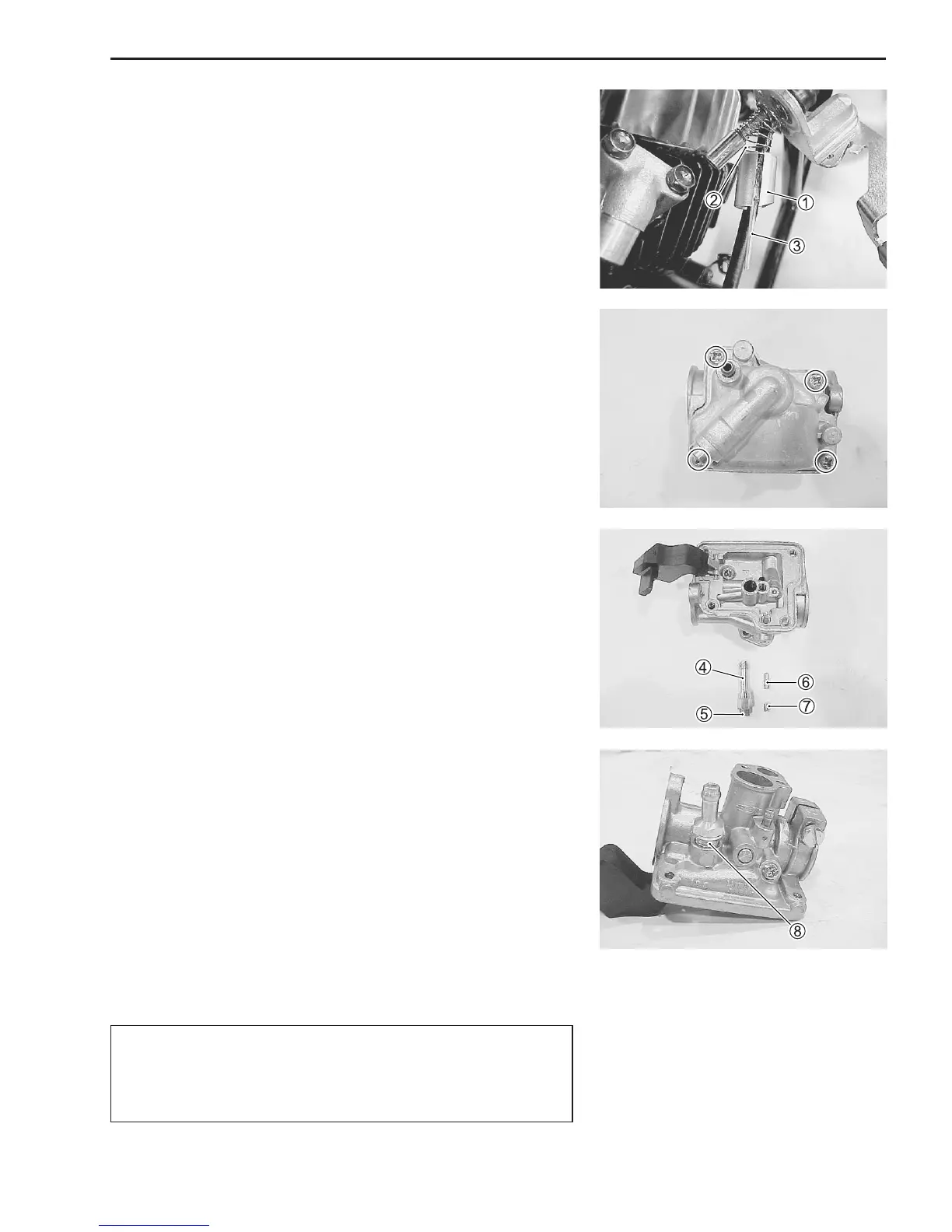

DISASSEMBLY
• Disconnect the throttle cable and remove the throttle valve 1
and spring 2.
• Remove the jet needle 3.
• Remove the screws and float chamber.
• Remove the main jet 4, needle jet 5, pilot jet No.1 6 and pilot
jet No.2 7.
• Remove the needle valve 8.
CLEANING
!
Some carburetor cleaning chemicale, especially dip-type
soaking solutions, are very corrosive and must be hardled
carefully. Always follow the chemical manufacturer’s in-
structions on proper use, handling and storage.
