Suzuki LT-A50 - Removal

4-6 FUEL AND LUBRICATION SYSTEM

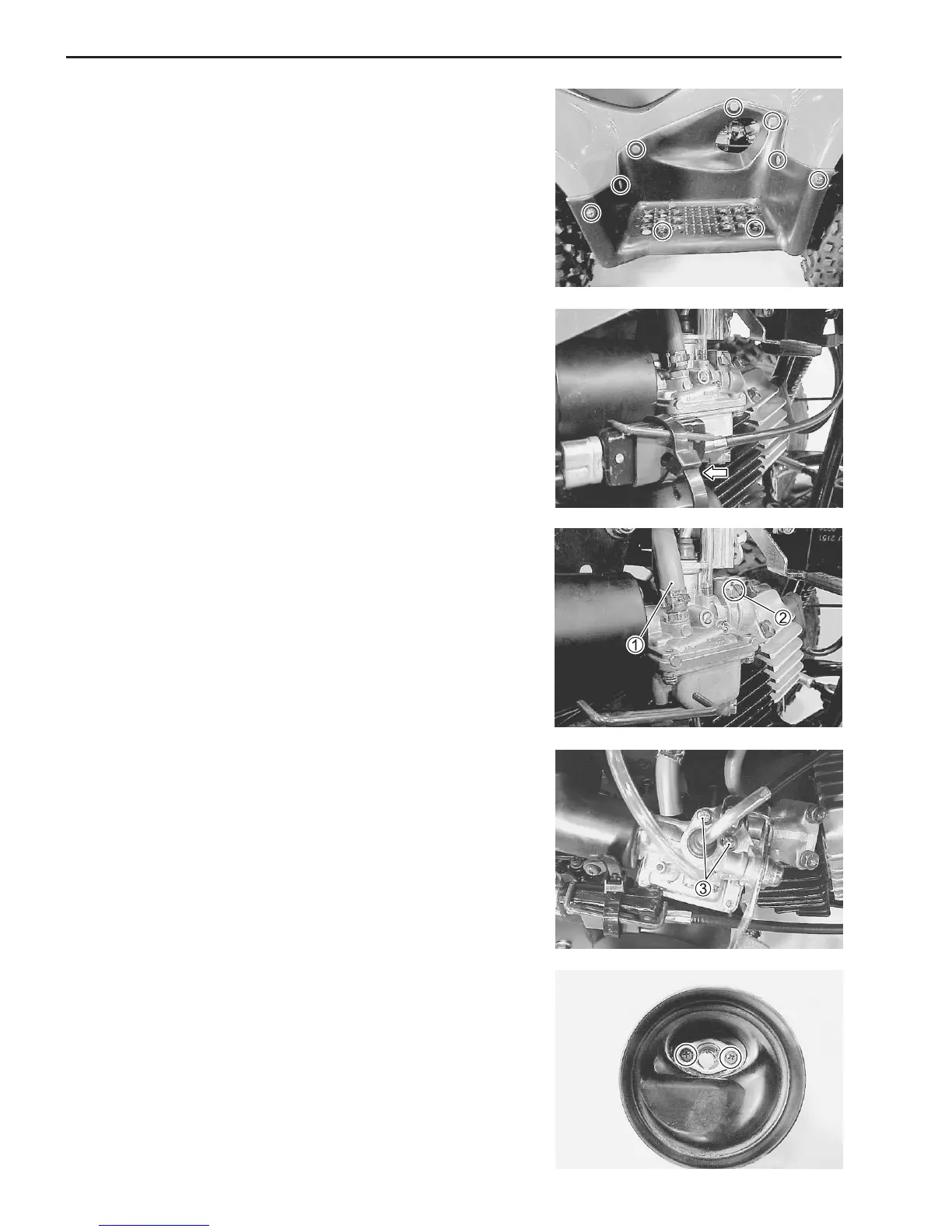

REMOVAL
• Remove the right frame cover. ("5-2)
• Remove the clamp.
• Turn the fuel valve to “OFF” position.
• Disconnect the fuel hose 1.
• Lossen the carburetor clamp bolt 2 .
• Remove the screws 3 with throttle valve.
• Remove the carburetor assebly.
• Remove the air cleaner case.
